Pattern Generator

Pattern Generator
TravelData TD3000 - Data Generator - 8/16 channels - 200 MHz

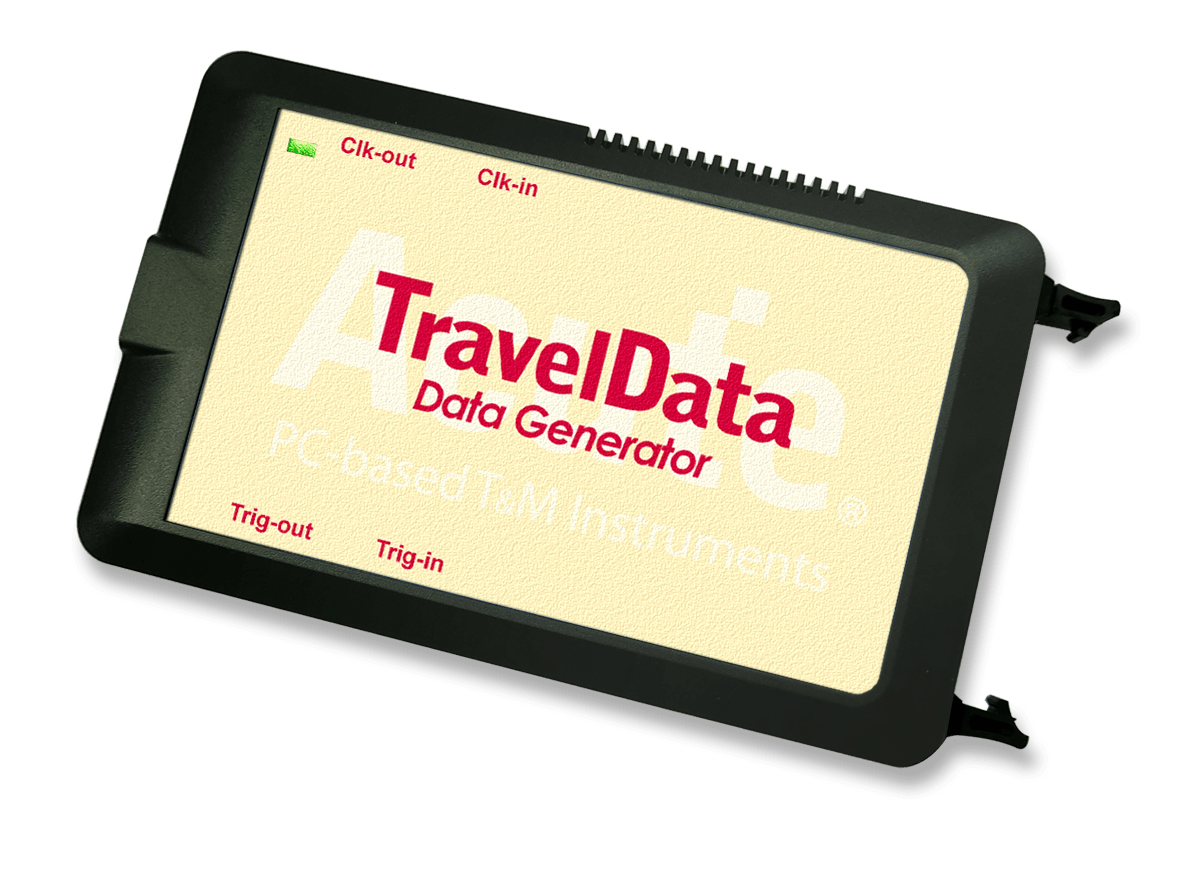

Acute - Pattern Generator - 16 Kanäle - 200 MHz
The new TravelData 3000 series are 8/16-channel USB3-based pattern generators with an internal clock range of maximum 200MHz and a memory of up to 256Mb/channel. Key data:PC-basedUSB 3.0 interfaceChannels: 8/16 (max. / Data Output), 3 (Event Input)Data rate: 200Mbps @Ch (max.)Memory: 256Mb/ch (max.)Clock range: 1Hz ~ 200MHz (6 digits)Data output: 0.8Vpp ~ 4.5Vpp (0.1V resolution) and Hi-ZDefault pattern: RS232, Sync / Async-Counter, I²C, I²S, SPI, CAN, USB1.1, ...User pattern: Direct draw, Acute-LA / Text / VHDL / VCD, ...
The TD3000 and DG3000 series use the same pattern generator software - see examples below.

The ideal complement to the USB3 based logic analyzers Models:
  •  TD3008E Event Channels: 3 Data Channels 8 Pattern Depth: 512 Kb/ch
  • TD3116B Event Channels: 3 Data Channels 16 Pattern Depth: 1 Mb/ch
  • TD3216B Event Channels: 3 Data Channels 16 Pattern Depth: 256 Mb/ch
Prices:
  • TD3008E = 1400 EUR + VAT
  • TD3116B = 2000 EUR + VAT
  • TD3216B = 3400 EUR + VAT
Download datasheet

DG3000 - Data Generator - 48/96/112 channels - 400 MHz

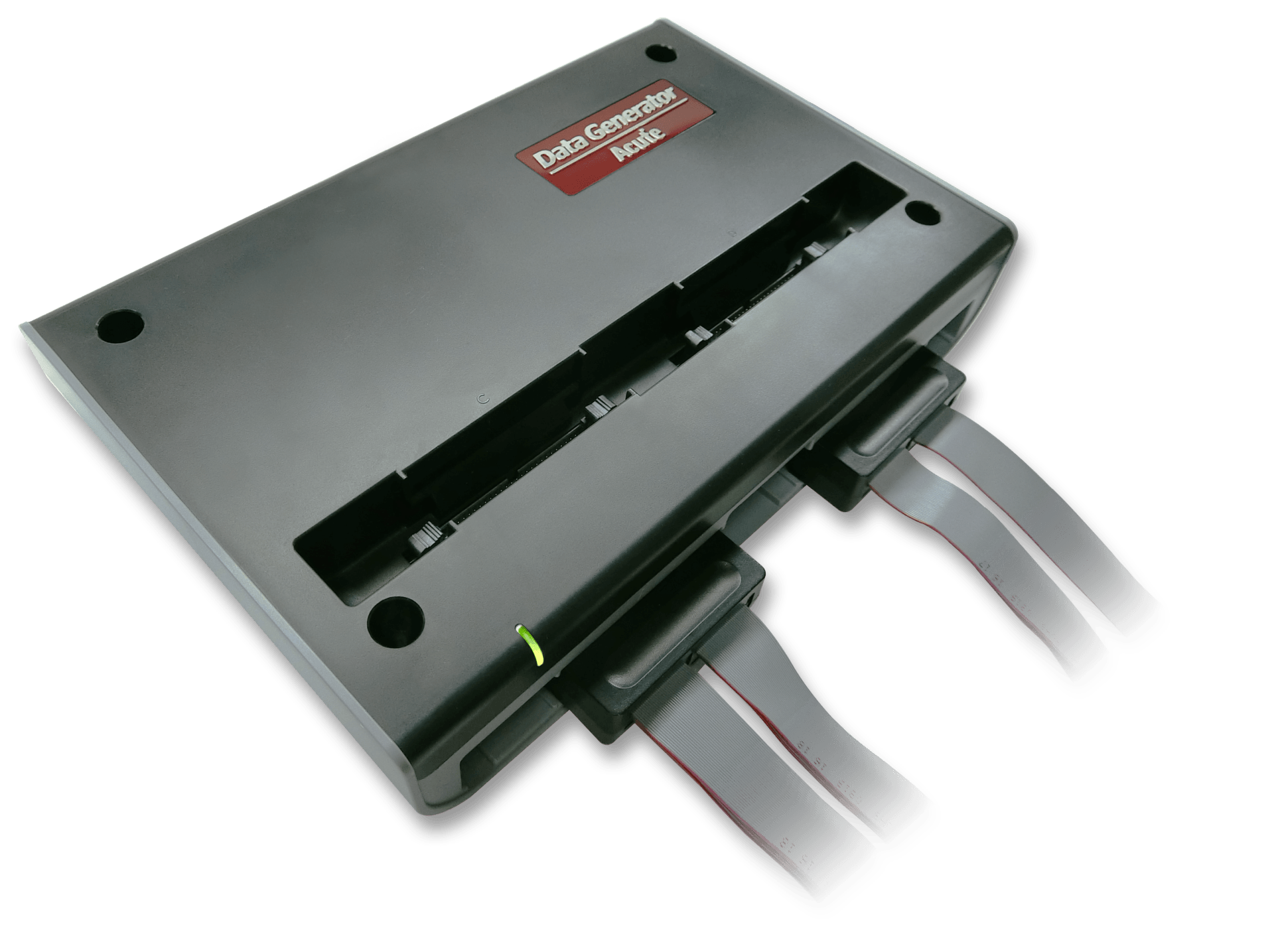

Acute - Pattern Generator - 112 Kanäle - 400 MHz
The new DG3000 series are USB3 based pattern generators with up to 112 channels with an internal clock range of maximum 400MHz and a memory of up to 256Mb/channel. The ideal addition to the USB3 based logic analyzers.

Key data:
  • USB 3.0 interface, 12V power adaptor
  • Channels: 48/96/112 max. (Data Output), 16 (Event Input)Data rate: 400Mbps @Ch (max.)
  • Memory: 256Mb/chClock Range: 1Hz ~ 400MHz (6 digits)
  • Probe output: 0.8V ~ 5.0V (0.1V resolution) and Hi-ZPhase tu ning between channels
  • Default pattern: RS232, Sync / Async-Counter, I²C, I²S, SPI, CAN, USB1.1, ...
  • User pattern: Direct draw, Acute-LA / Text / VHDL / VCD, ...

Models:
  • DG3064B Event Channels: 16 Data Channels: 48 Pattern Depth: 256 Mb/ch
  • DG3096B Event Channels: 16 Data Channels: 96 Pattern Depth: 256 Mb/ch
  • DG3128B Event Channels: 16 Data Channels: 112 Pattern Depth: 256 Mb/ch
DG3000 Series Prices:
  • DG3064B = 6700 EUR VAT
  • DG3096B = 8700 EUR VAT
  • DG3128B = 10000 EUR VAT
Download datasheet

Pattern Generator Software - TD3000 DG3000 Serie

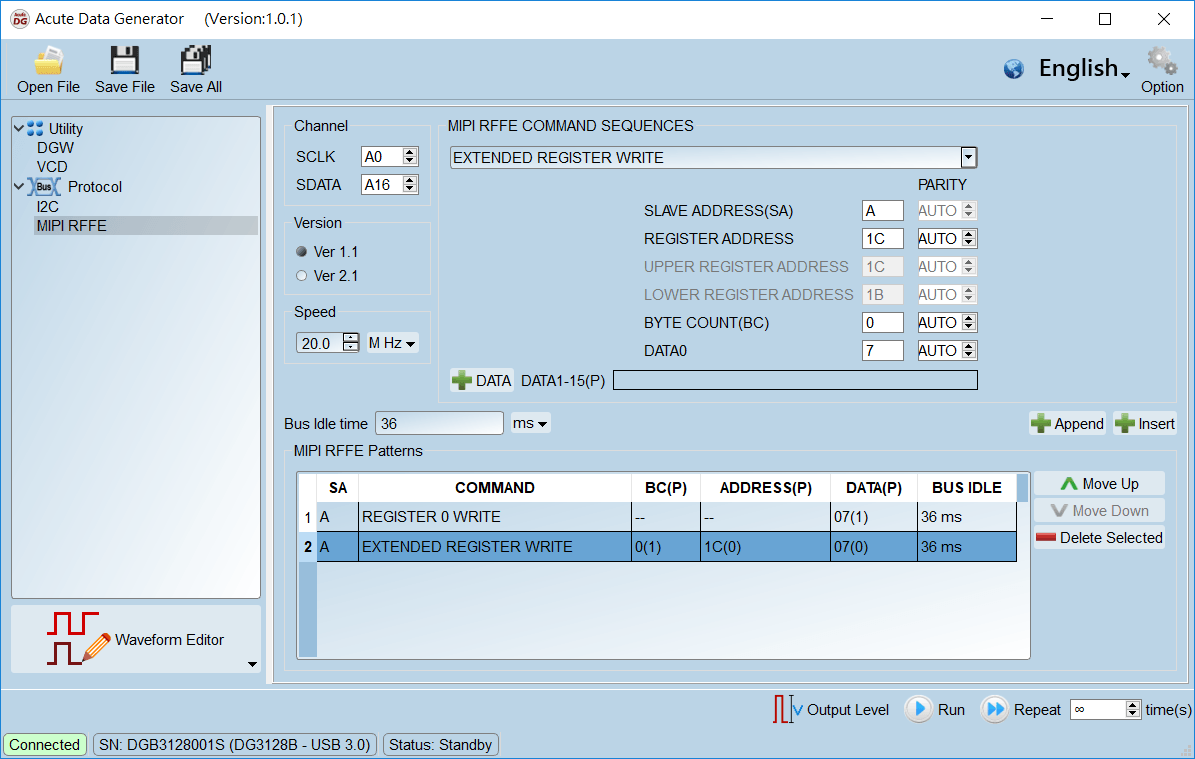

The TD3000 series and DG3000 series use the same pattern generator software. The SW can generate the waveform of e.g. I2C / MIPI RFFE protocol and convert the VCD file into DG3000/TD3000 waveform:
Acute - Pattern Generator - Software

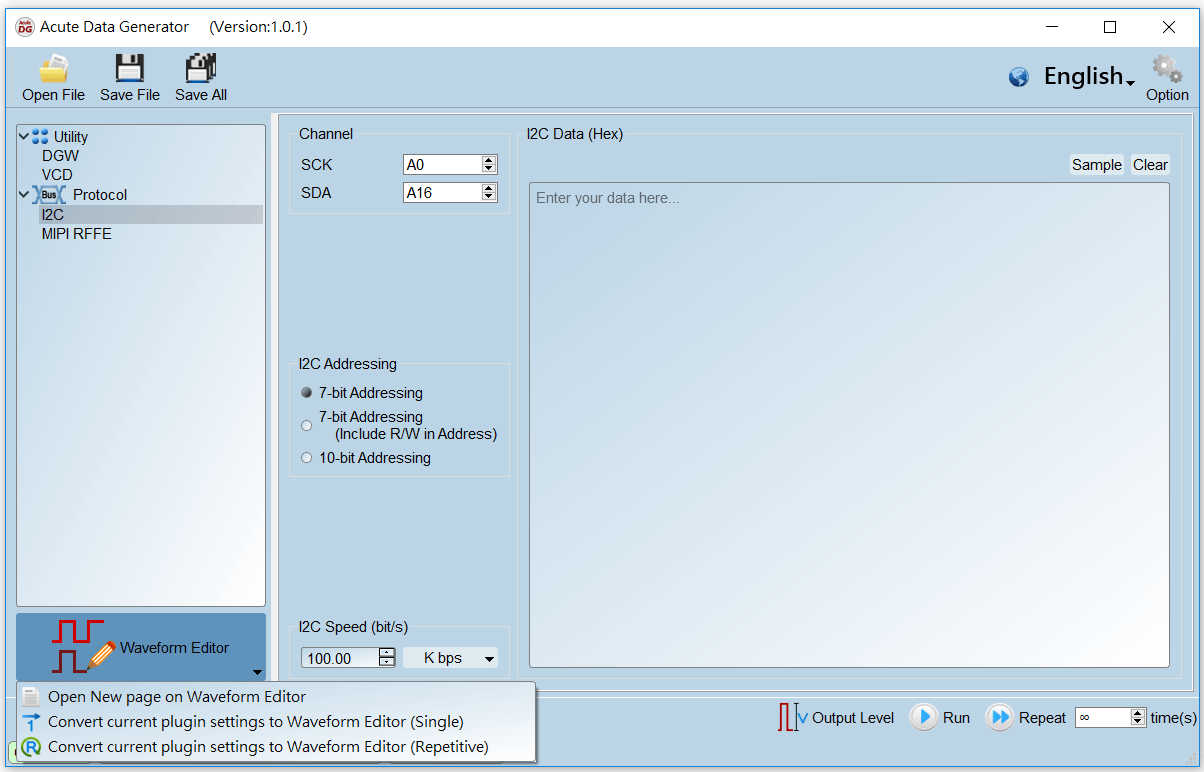

Selection - Waveform Editor Tool:
Acute - Pattern Generator - Software

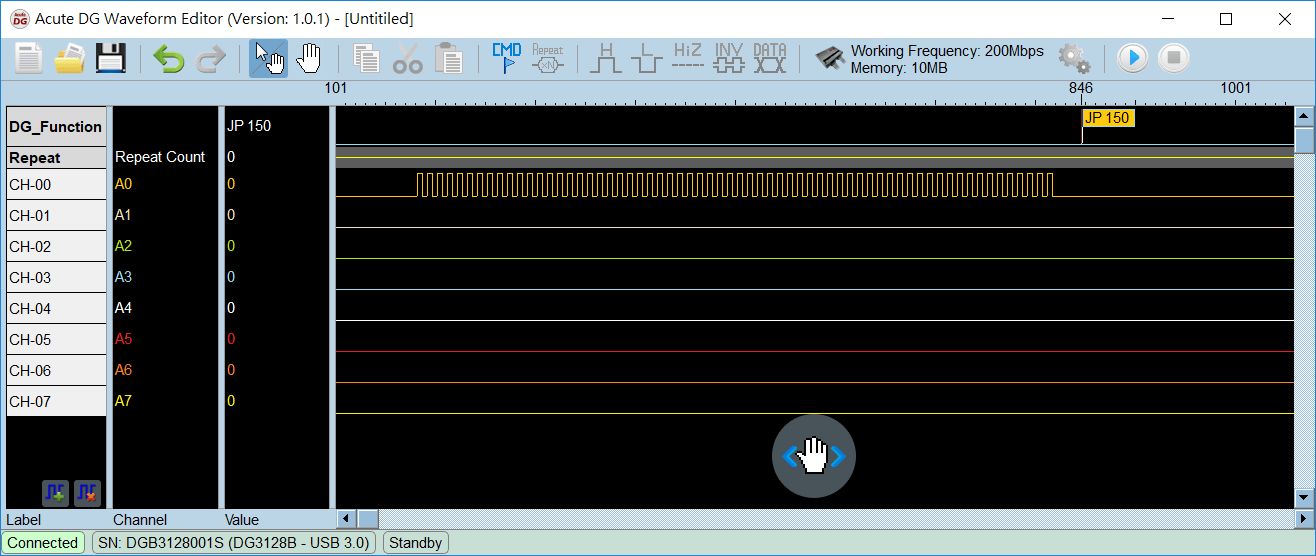

Application - Waveform Editor Tool:
Acute - Pattern Generator - Software

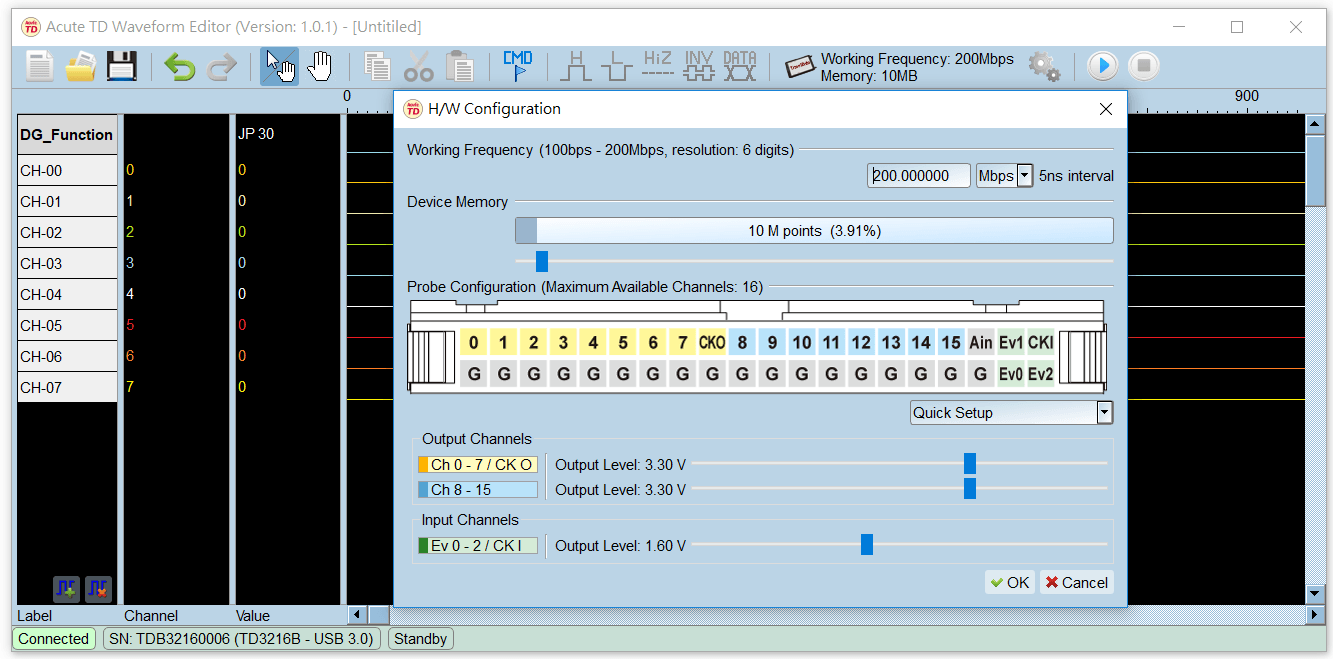

Configuration - TD3000 Series:
Acute - Pattern Generator - Software
Configuration - DG3000 Series:
Acute - Pattern Generator - Software
