About ACUTE Technology

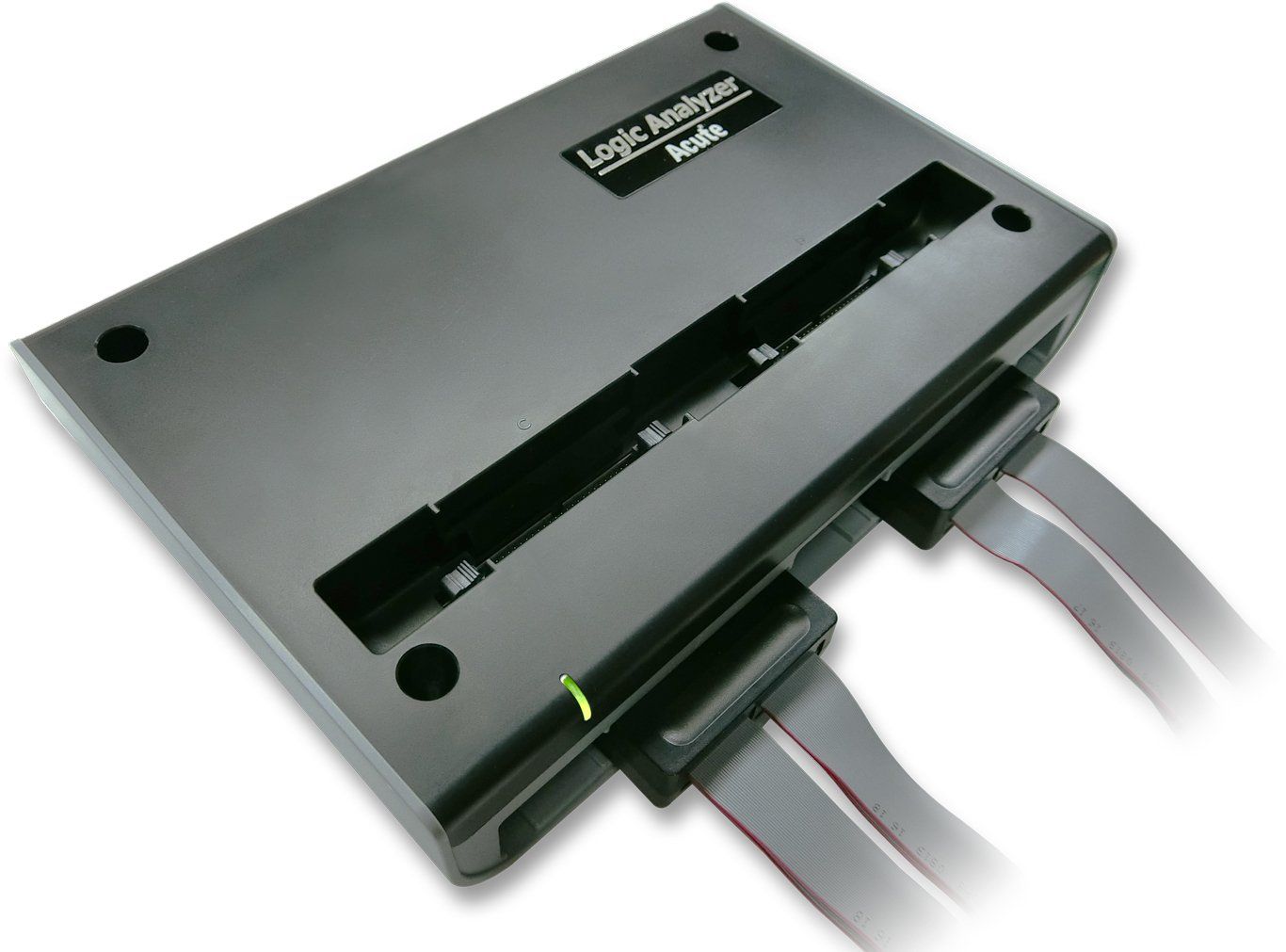

ACUTE Technology Inc. has been manufacturing PC and USB-based test and measurement devices since 1996. Our products include the new Busfinder, the LA3000 logic & protocol analyzer with up to 1000 channels, the mobile TravelLogic logic & protocol analyzers, the PkPG2116 pattern generators, the 200MHz TravelScope digital storage oscilloscopes with up to 12 channels, the active ADP1025/ADP2025 high-voltage probes for up to 3500V, the TravelBus, a 2 in 1 analyzer (protocol & logic) for long-term analysis and currently the MSO3000 series (mixed signal oscilloscope) as the smart 6-in-1 instrument for service and home office.

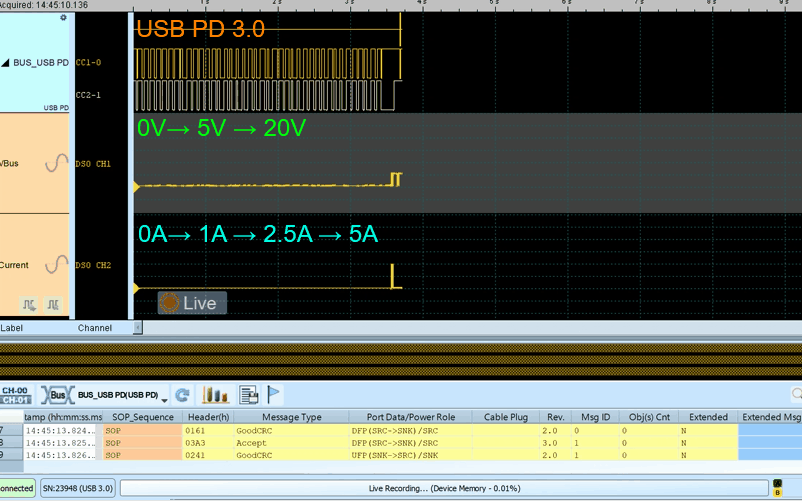

Acute provides a real-time waveform and decode display for slow signals in the Logic Analyzer functionality. This helps all developers to quickly and clearly understand the decoded content and thereby reduce the time spent on debugging. 23 protocol decoders are supported, with more to come. The beta version of Live Mode is now available for download => Download Live Mode Beta Software
Live mode provides clear visualization of slow signals and helps you quickly understand decoding details and reduce debugging time. Experience the innovative LA features now to increase your development efficiency!
Product overview

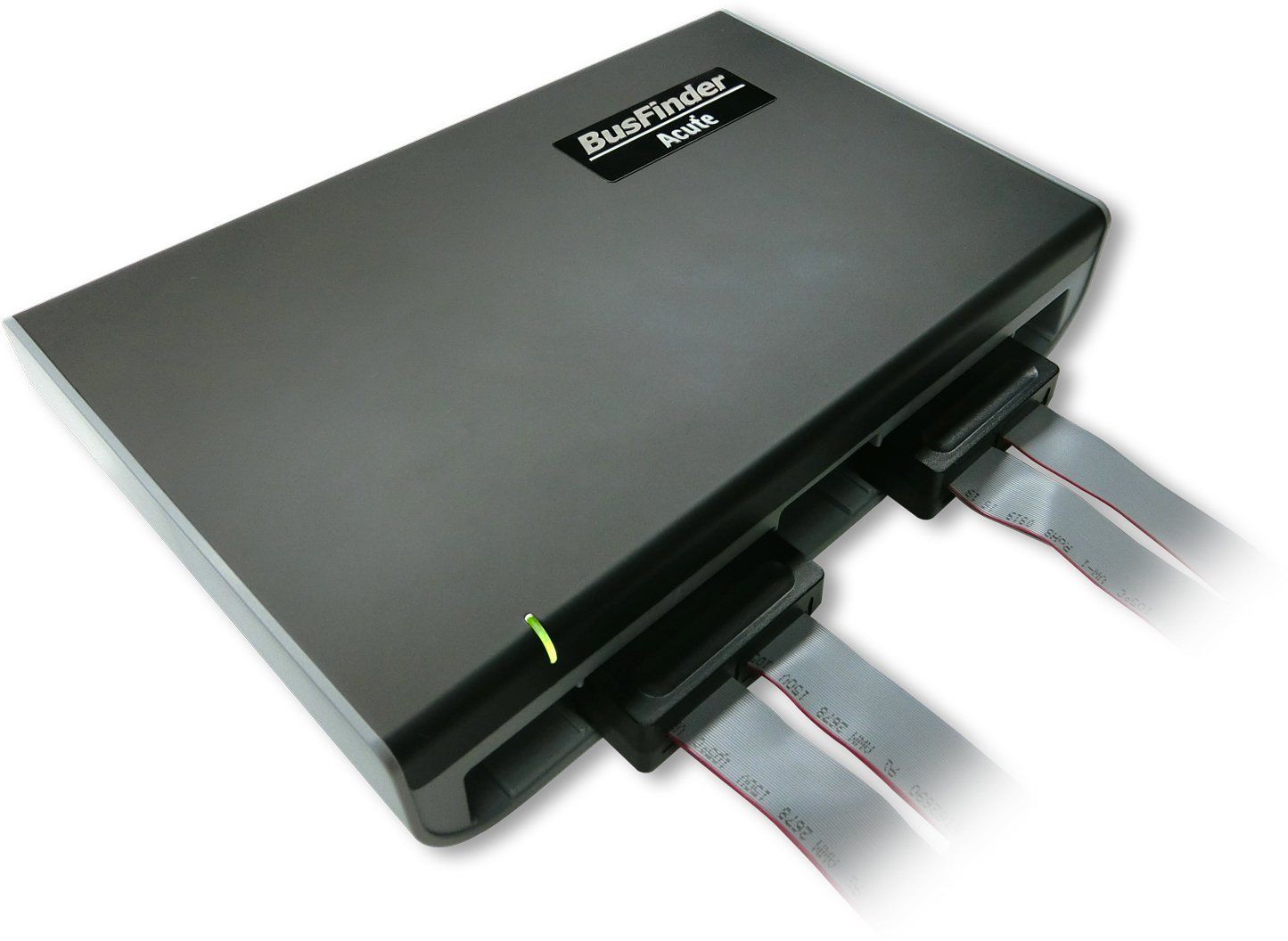

The new BusFinder BF7264PRO (MIPI D-PHY Option / UFS2.1) from ACUTE Technology Inc. is a 4GHz 2-in-1 analyzer (protocol and logic) specifically designed for analyzing the memory chips eMMC5.1, NAND Flash, SD3.0 / SDIO, SD4.0 (UHS- II), SPI NAND and SPI Flash and MIPI D-PHY. The BusFinder works either as protocol analyzers with real-time display or as logic analyzers or in combination.
The LA4000 is a USB3.0 PC-based protocol analyzer and logic analyzer with 4GHz timing analysis, combined in one device. The protocol analyzer mode offers real-time display. The LA4000 is primarily aimed at the multi-pin IC design market such as FPGA, LCD drivers, etc. It supports more than 80 protocols, is equipped with 36Gb RAM and, depending on the model, provides 68 or 136 channels per module, which can be expanded to over 1000 channels if required.

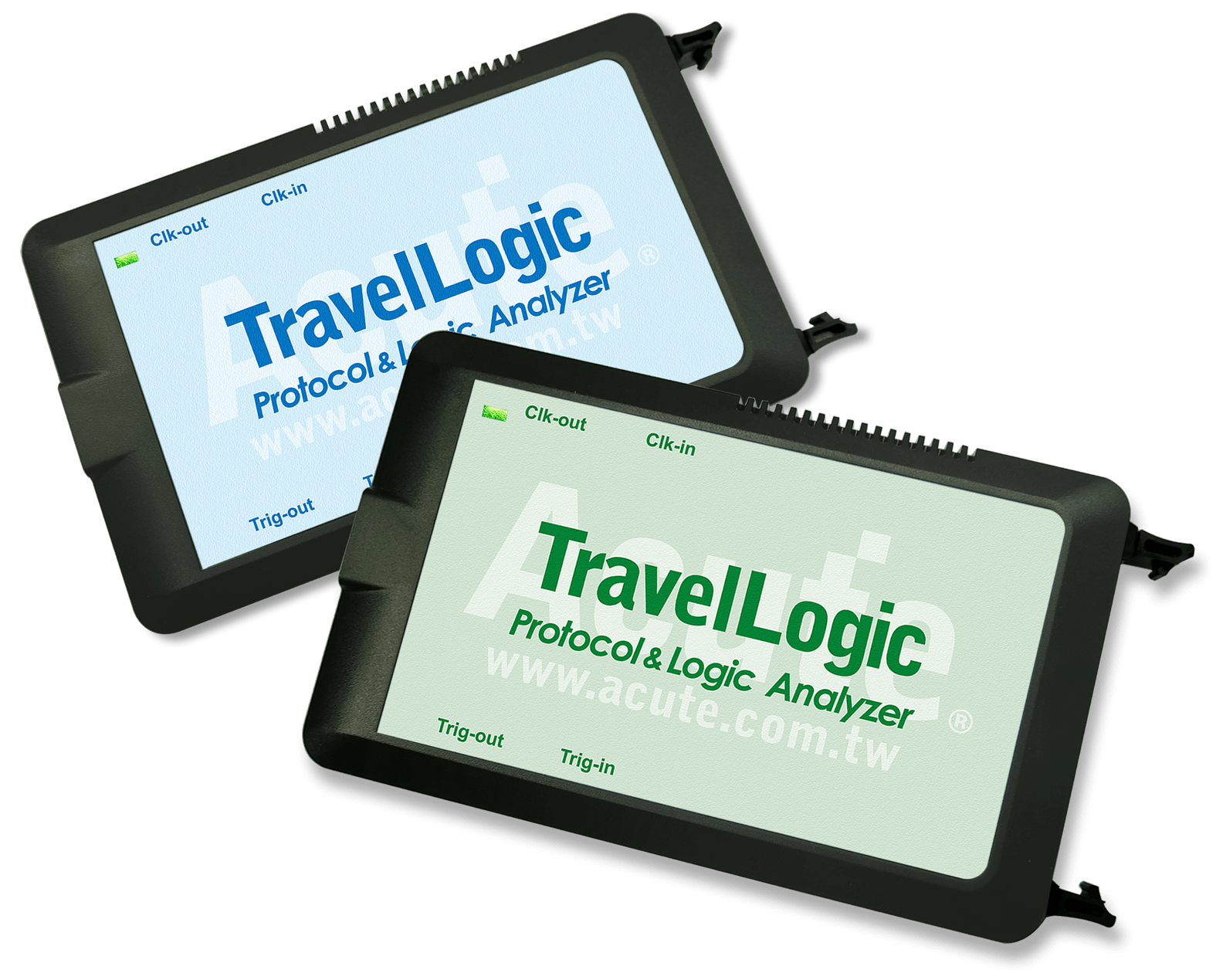

The TravelLogic is a logic analyzer and protocol analyzer with 34 channels, 2GHz timing analysis, max. 8Gb memory, many bus triggers including SD3.0/eMMC4.5 and more than 80 bus decodes that can also be connected to many standalone DSOs to form an MSO.

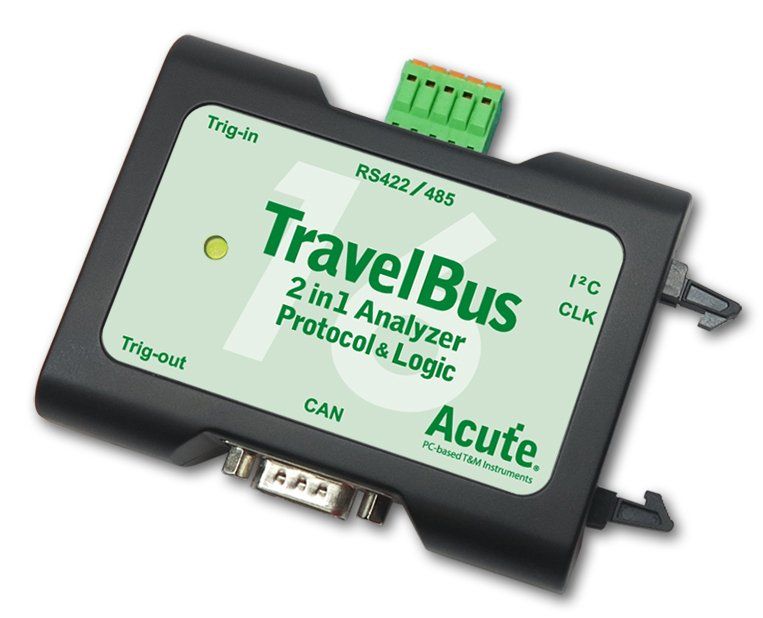

The TravelBus is a protocol analyzer and logic analyzer (800/200 MHz timing/state) with USB3.0 interface optimized for long-term analysis; it has an I2C port with Schmitt trigger, differential CAN, RS485/RS422, ProfiBus ports, another example of a high-quality test and measurement device from Acute.

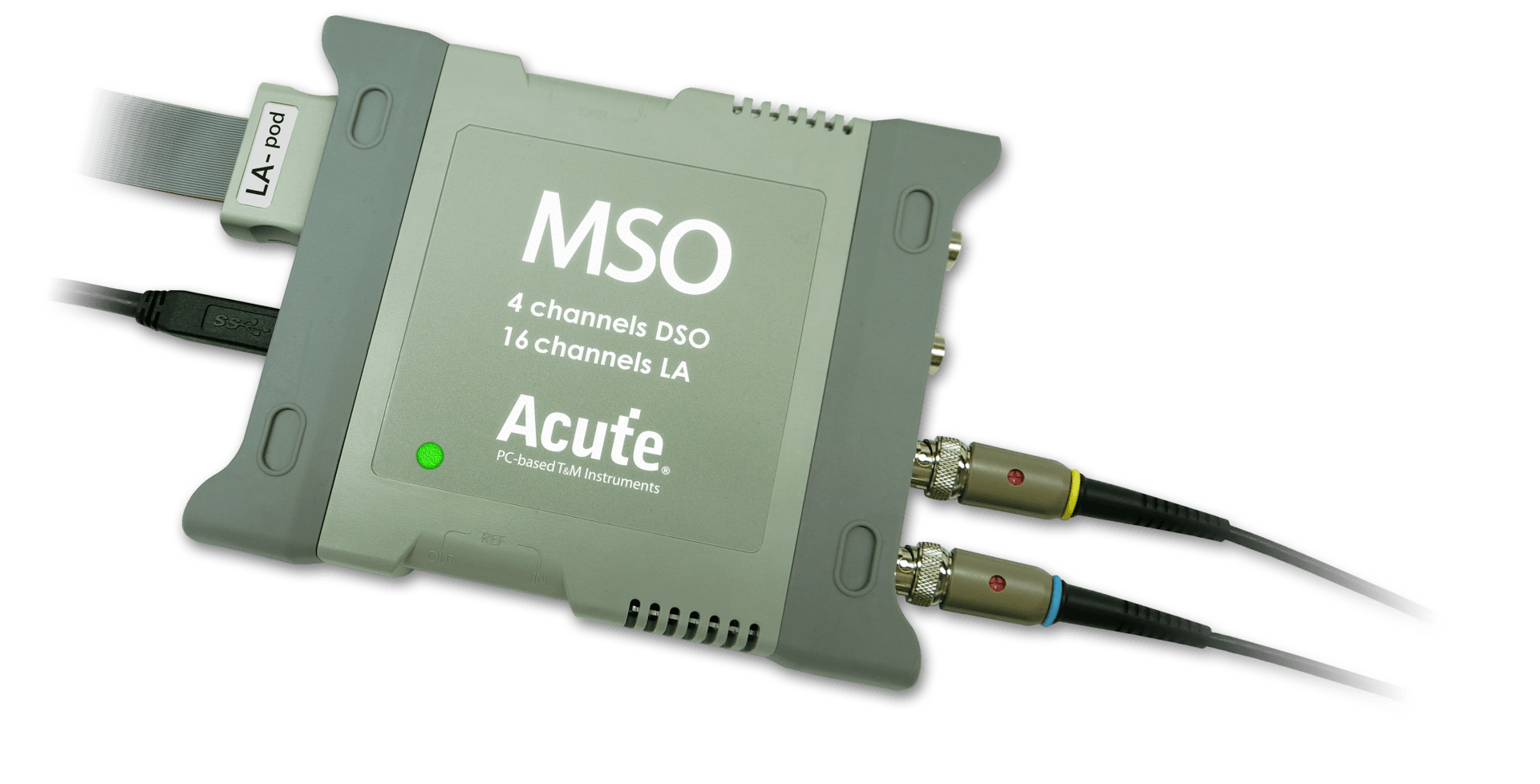

The MSO3000 series (mixed signal oscilloscope) from ACUTE is a 6-in-1 instrument with 2 GHz digital and 200 MHz analog at max. 16-bit resolution. It is a DAQ, DVM, frequency counter, DSO, logic analyzer and a protocol analyzer in one system. Depending on the model and cascading, 4/16 to 16/64 analog/digital channels are available - the smart solution for office, service and home office.

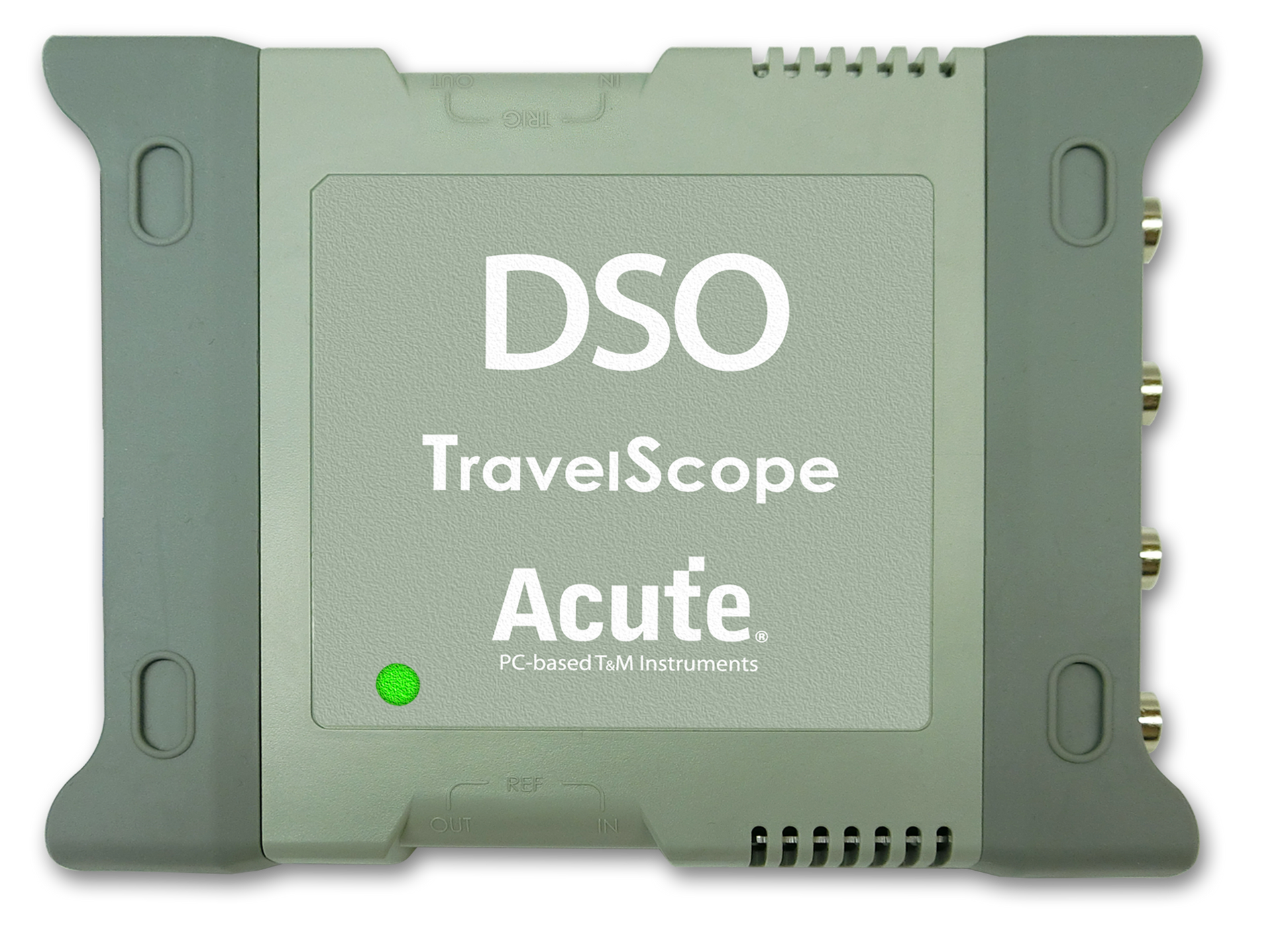

The TravelScope series are digital storage oscilloscopes with 1GS/s and 200MHz bandwidth, 128MS memory, max. 16bit vertical resolution and 2mV/div vertical sensitivity. The TravelScopes can be cascaded to up to 16 channels.
Acute's active ADP differential probes, with measuring ranges up to /-3500V, are a useful addition to many PC oscilloscopes. The active differential probes ADP1025/2025/5035 offer a maximum bandwidth of 25MHz and the new models ADP-1100/2100/5100 offer a bandwidth of 100MHz with a switchable bandwidth limitation to 5MHz or FULL, measuring ranges of /-700V (DC pk AC), /-1400V (DC pk AC) or /-3500V (DC pk AC) with a protective circuit of 2500V, 4000V or 6000V.
The new TravelData 3000 series are 16-channel USB3 based pattern generators with an internal clock range of maximum 200MHz and a memory of up to 256Mb /channel.
The new DG3000 series are USB3 based pattern generators with up to 112 channels with an internal clock range of maximum 400MHz and a memory of up to 256Mb/channel.
