Busfinder - BF7264PRO - 4GHz - 64 channels - 32Gb - MIPI D-PHY / UFS2.1 - USB3.0

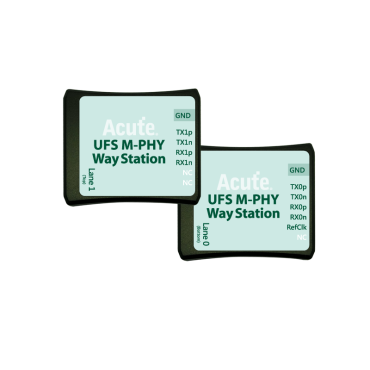

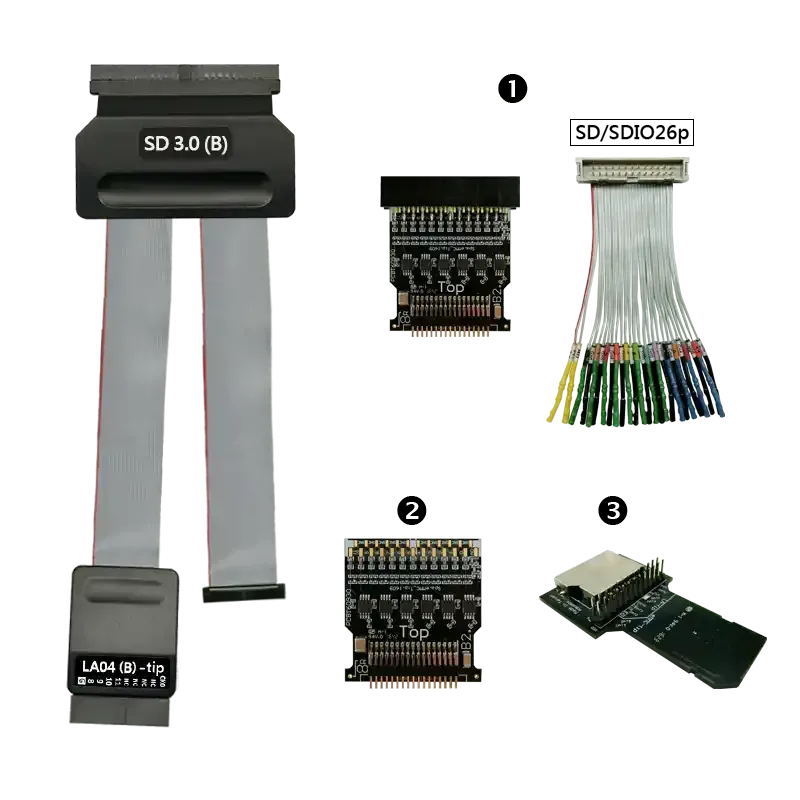

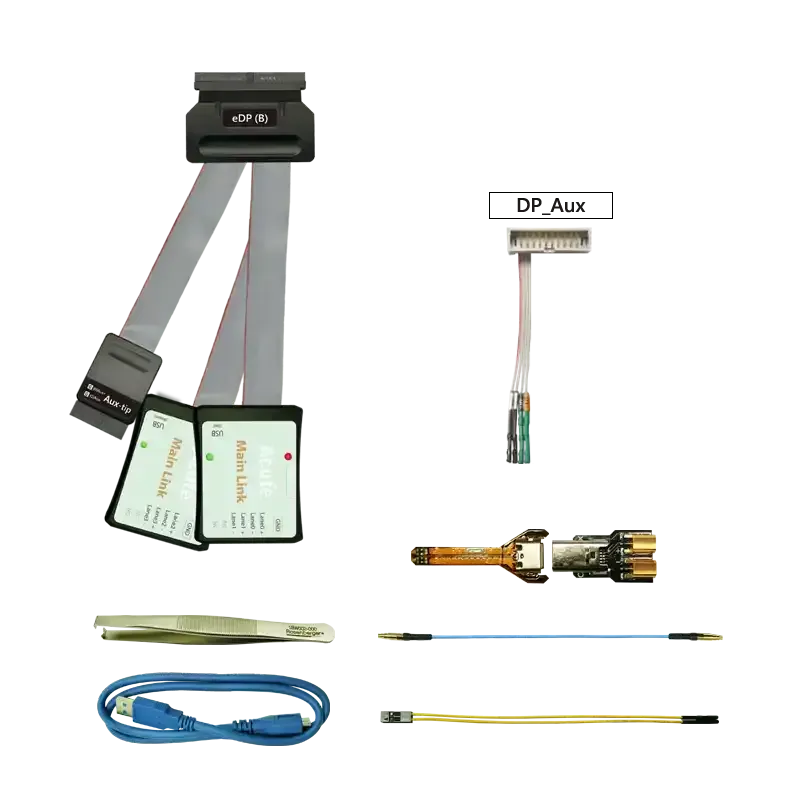

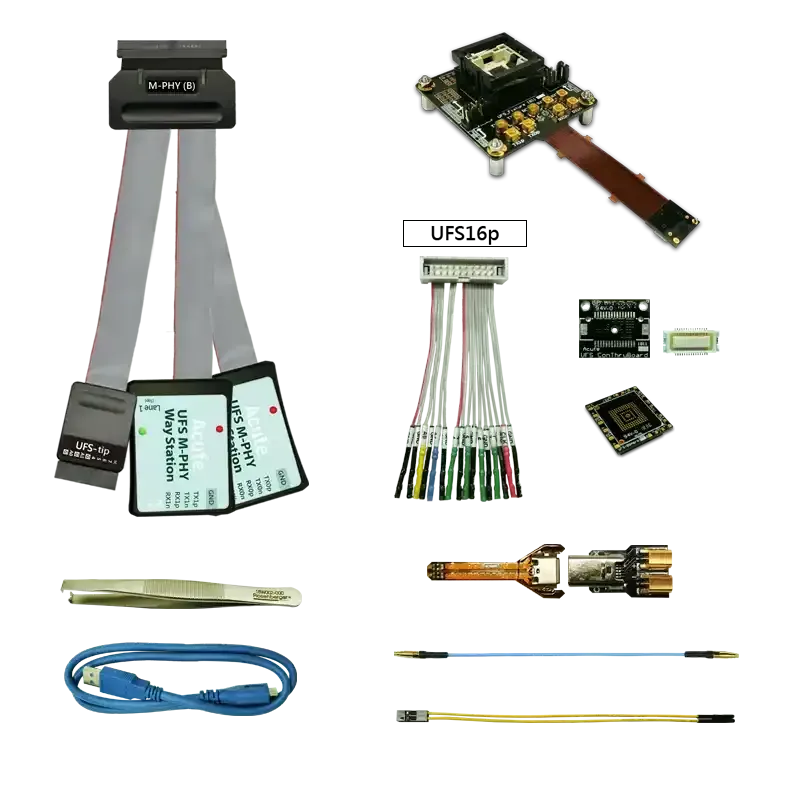

The new BusFinder BF7264PRO from ACUTE Technology Inc. is a 2-in-1 analyzer (protocol and logic) and works either as a protocol analyzer with real-time display or as a logic analyzer or in combination. The BusFinder BF7264PRO offers 4GHz timing analysis, 400MHz state analysis, has a 32Gb memory and supports the "Transitional Storage" technology; this makes it possible to capture large protocol data. Activate the data filter (H / W) to record further commands in the same memory and hide data (S / W) so that only the interesting data is displayed in the protocol report window. Special adapters are offered for the various protocols such as MIPI D-PHY, eMMC5.1, NAND Flash, SD3.0 / SDIO, SD4.1 (UHS- II), SPI NAND and SPI Flash, UFS2.1. The BusFinder BF7264PRO is a 64-channel logic analyzer when no protocol functions are required - prices on request due to different configuration options.
Busfinder - BF6264B - Logikanalysator - Protokollanalysator - MMC 5.1, MIPI D-PHY 1.2, NAND-Flash, SD 3.0, SD 4.1 (UHS-II)
Due to increasing applications in 5G communication technology, hi-tech companies in Silicon Valley have focused their research on cloud applications and integration. Many display or camera products are used to meet the huge data transmission needs; therefore, more and more powerful storage devices are needed. Acute has released the new protocol analyzer BusFinder (BF7264PRO) to support its customers who need to measure MIPI D-PHY 1.2 (DSI/CSI) signals. The BF7264PRO also supports SD/eMMC/NAND flash through various options to meet the needs of engineers who want to debug cloud storage, smartphones, self-driving cars, AIOT, ...etc.

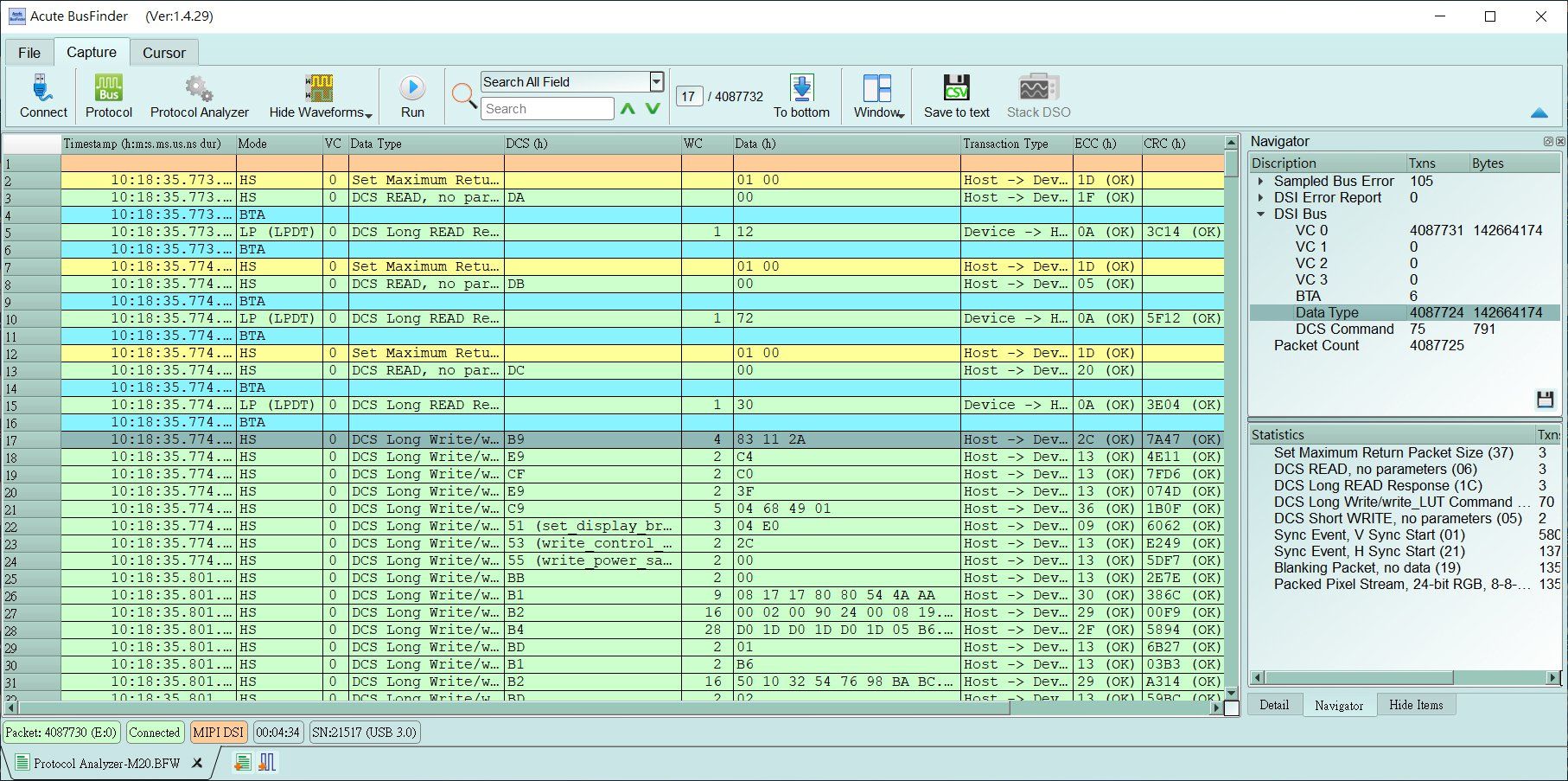

D-PHY Software
Busfinder - BF6264B - Logikanalysator - Protokollanalysator - MMC 5.1, MIPI D-PHY 1.2, NAND-Flash, SD 3.0, SD 4.1 (UHS-II)

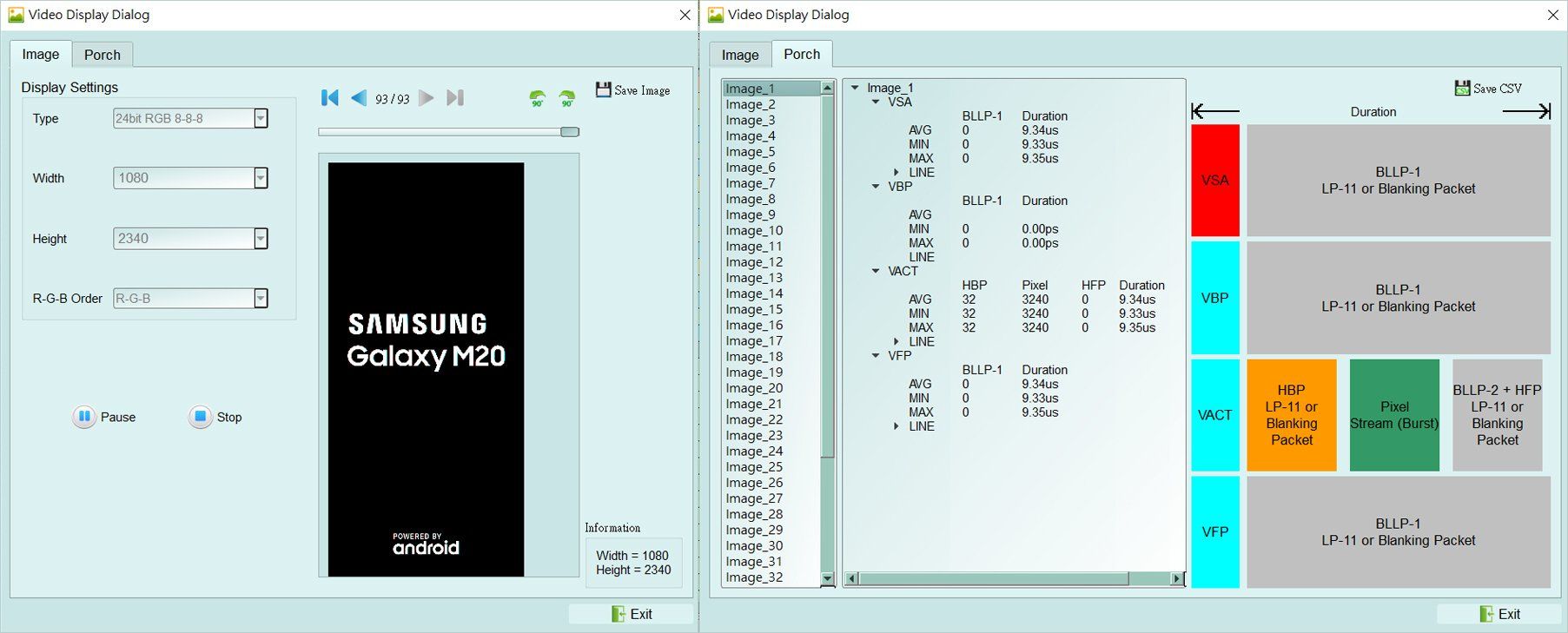

D-PHY Image Restore
Busfinder - BF6264B - Logikanalysator - Protokollanalysator - MMC 5.1, MIPI D-PHY 1.2, NAND-Flash, SD 3.0, SD 4.1 (UHS-II)
General features

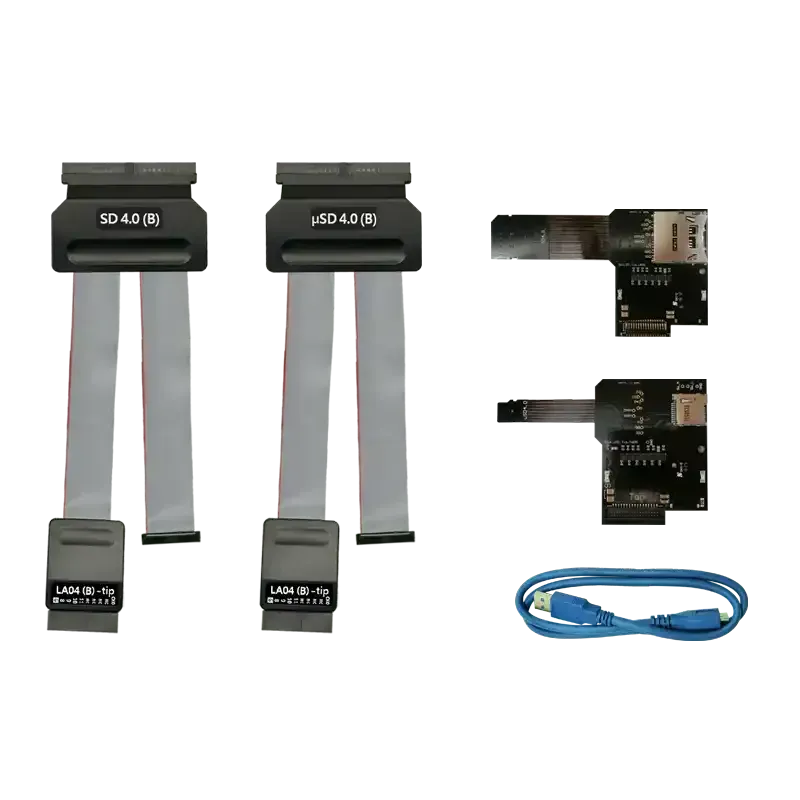

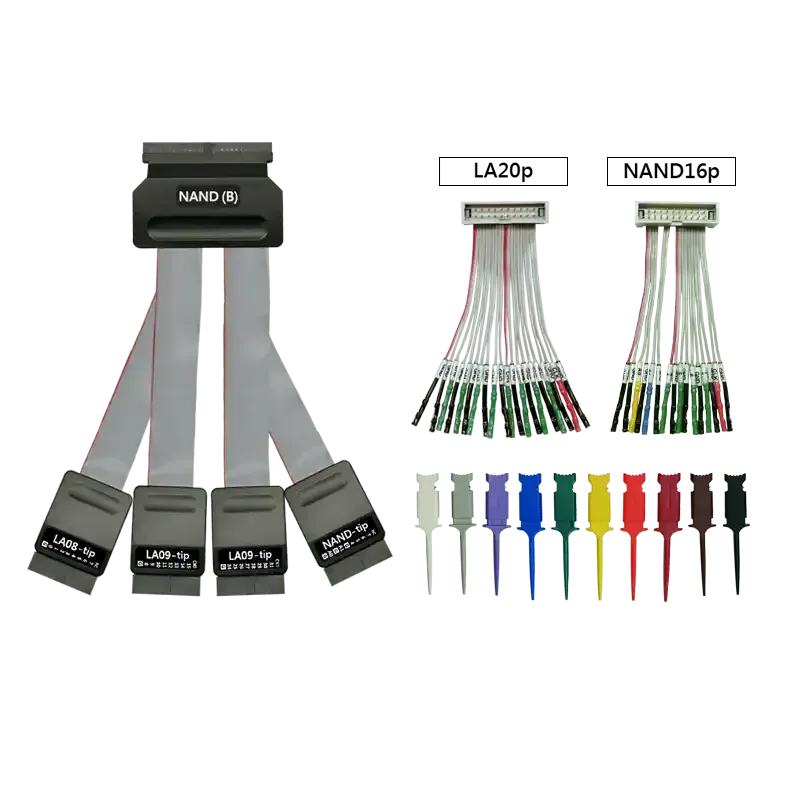

  • Protocol analyser: MMC 5.1, MIPI D-PHY 1.2, NAND flash, SD 3.0, SD 4.1 (UHS-II) + UFS2.1
  • Real-time data display, waveforms after acquisition
  • Trigger for commands or data
  • Different active probes for different protocols for easier connections
  • Filter data to store more commands
  • Hide data for easy reading
  • Search data for quick retrieval
  • Statistics for commands and data
  • Two voltage detectors to detect design errors due to voltage drop
  • Use of the PC hard disc (SSD) to record long-term data
  • Log monitor like dash camera for long-term monitoring (months)

Logic analyser: eMMC 5.1, NAND flash, SD 3.0, serial flash (SPI NAND), SPI
  • 4GHz timing analysis - 400MHz state analysis
  • 8-state flow diagram Bus trigger
  • Bus decoding with waveforms
  • Stacks with a DSO to form an MSO
  • PC-based, 64 channels
  • USB 3.0 interface, 12V power supply
  • 32Gb total memory

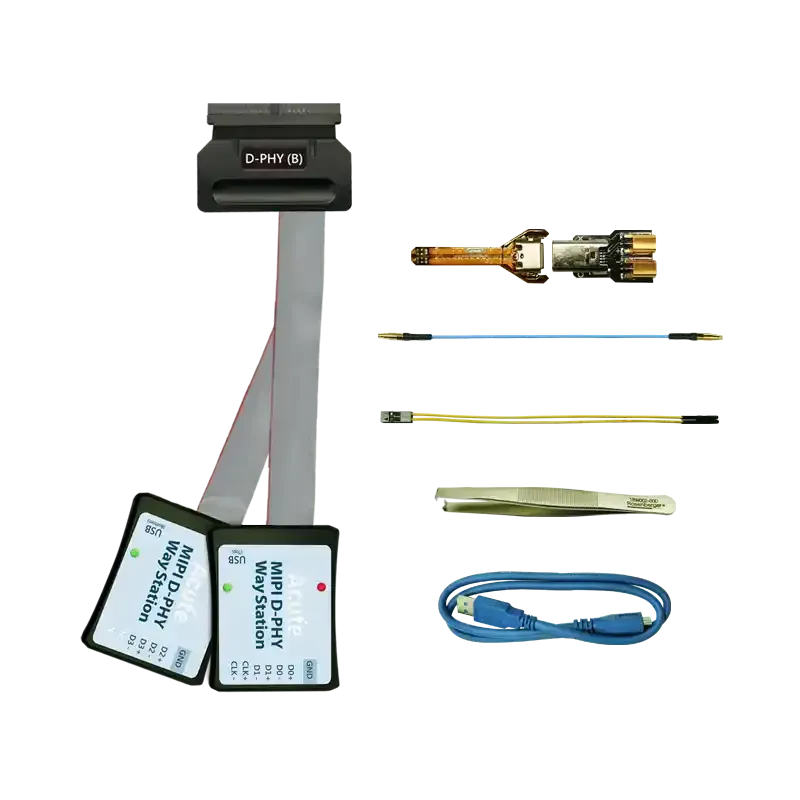

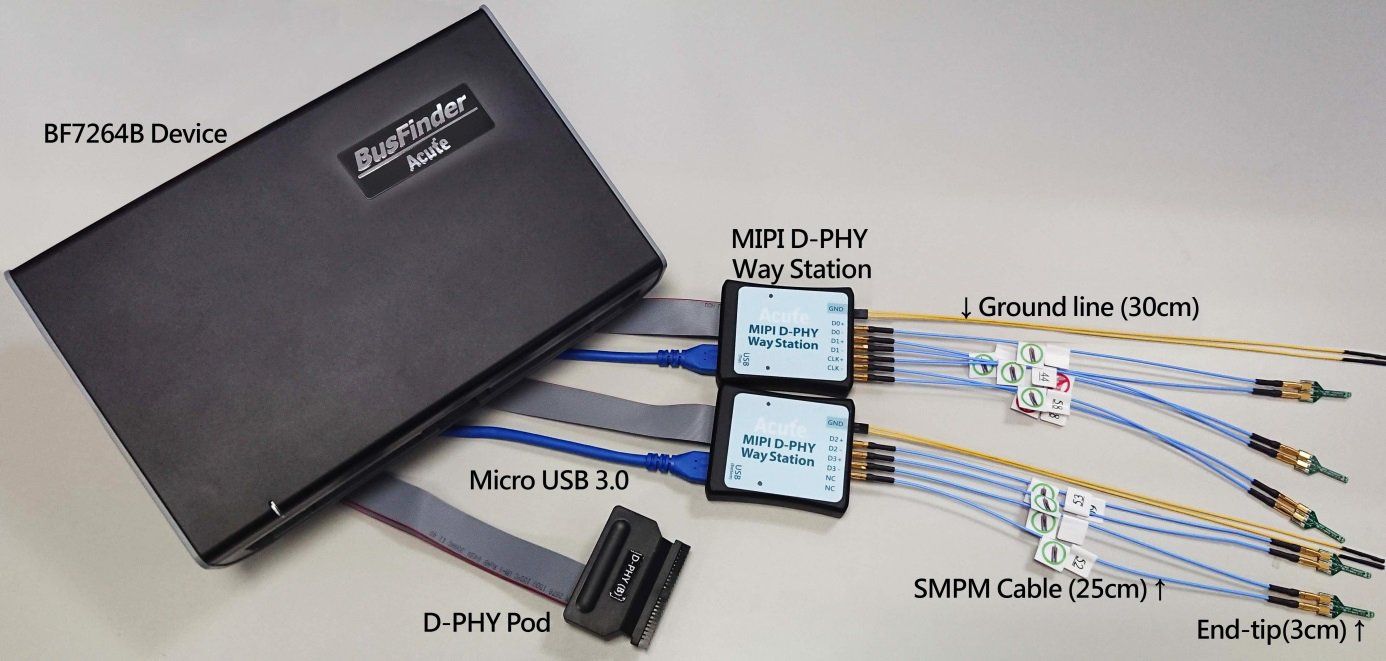

MIPI D-PHY - Option
Busfinder - BF6264B - Logikanalysator - Protokollanalysator - MMC 5.1, MIPI D-PHY 1.2, NAND-Flash, SD 3.0, SD 4.1 (UHS-II)
Busfinder - BF6264B - Logikanalysator - Protokollanalysator - MMC 5.1, MIPI D-PHY 1.2, NAND-Flash, SD 3.0, SD 4.1 (UHS-II)
Some of the key features of the BF7264PRO MIPI D-PHY option are:
Supports D-PHY V1.2CSI-2 1.3 or DSI 1.3 protocol packets displayed with the DSI DCS 1.3 commands as followsUse 32Gb RAM as buffer to stream all D-PHY data to the SSD HD to record the entire data flow from Low Power mode to High Speed mode."Data Filter" filters out unwanted video data to save storage space."Search" searches for specific data"ECC/CRC Packet" displays and counts ECC and CRC.Displays video images with 24-bit pixel or DSC packets.The D-PHY command statistics include the number of packets, individual commands, different data lengths and errors.D-PHY command triggeringCurrent prices for all options on request
Download BF7264PRO datasheet Download MIPI D-PHY application
