Logic Analyzer & Protocol Analyzer
Logic Analyzers & Protocol Analyzers

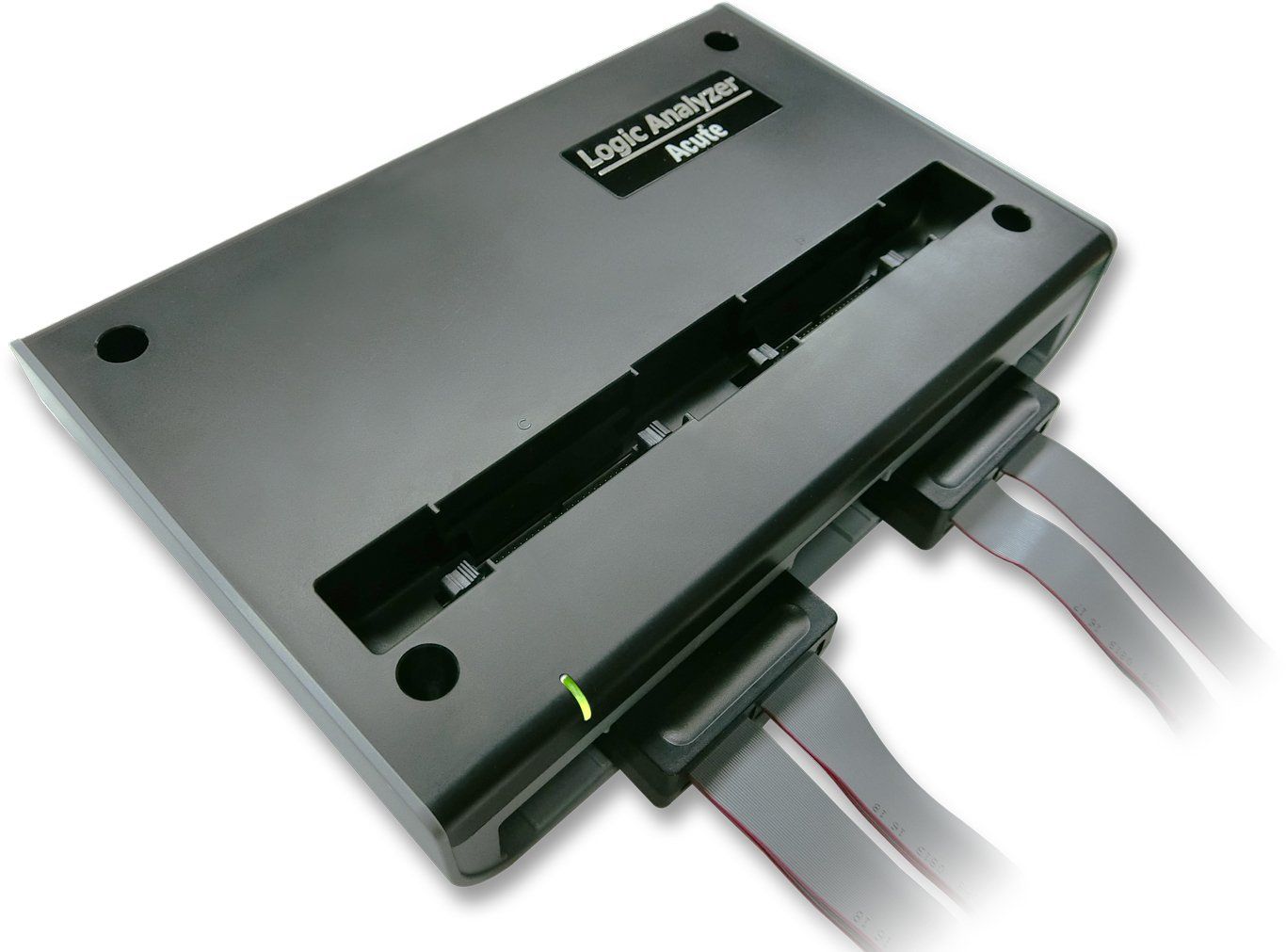

LA4000 - 4Ghz - max. 136 channels - 2-in-1 analyzer - USB3.0
Acute - Logikanalysator - Protokollanalysator
Compared to the LA3000 , the LA4000 series features additional clock channels and extended frequency ranges for both timing and state analysis. Differences between the new LA4000 series and the previous model LA3000 The LA4000 series achieves a frequency of 4 GHz in timing analysis and an impressive 400 MHz in state analysis, making it the ideal choice for logic analysis in high-speed data transmission, analyzing communication protocols, and handling complex signal structures. The LA4128B logic analyzer is a versatile tool that offers comprehensive support with its 136 channels. It is suitable for various application scenarios, from analyzing signal structures to decoding and debugging communication protocol buses. The LA4128B model is particularly characterized by its robust performance, making it the ideal choice for ADC and FPGA chip development and debugging tasks. The LA4000 series also supports stacking measurements with different oscilloscopes via the MCX to BNC cable, allowing seamless connection with oscilloscopes from other manufacturers such as Keysight, R&S, Tektronix, Acute TravelScope and others. Whether in applications that require high-speed timing analysis or complex state analysis, the LA4000 series proves to be a reliable partner that offers robust support and versatile applications for your measurement tasks - prices on request due to various configuration options.

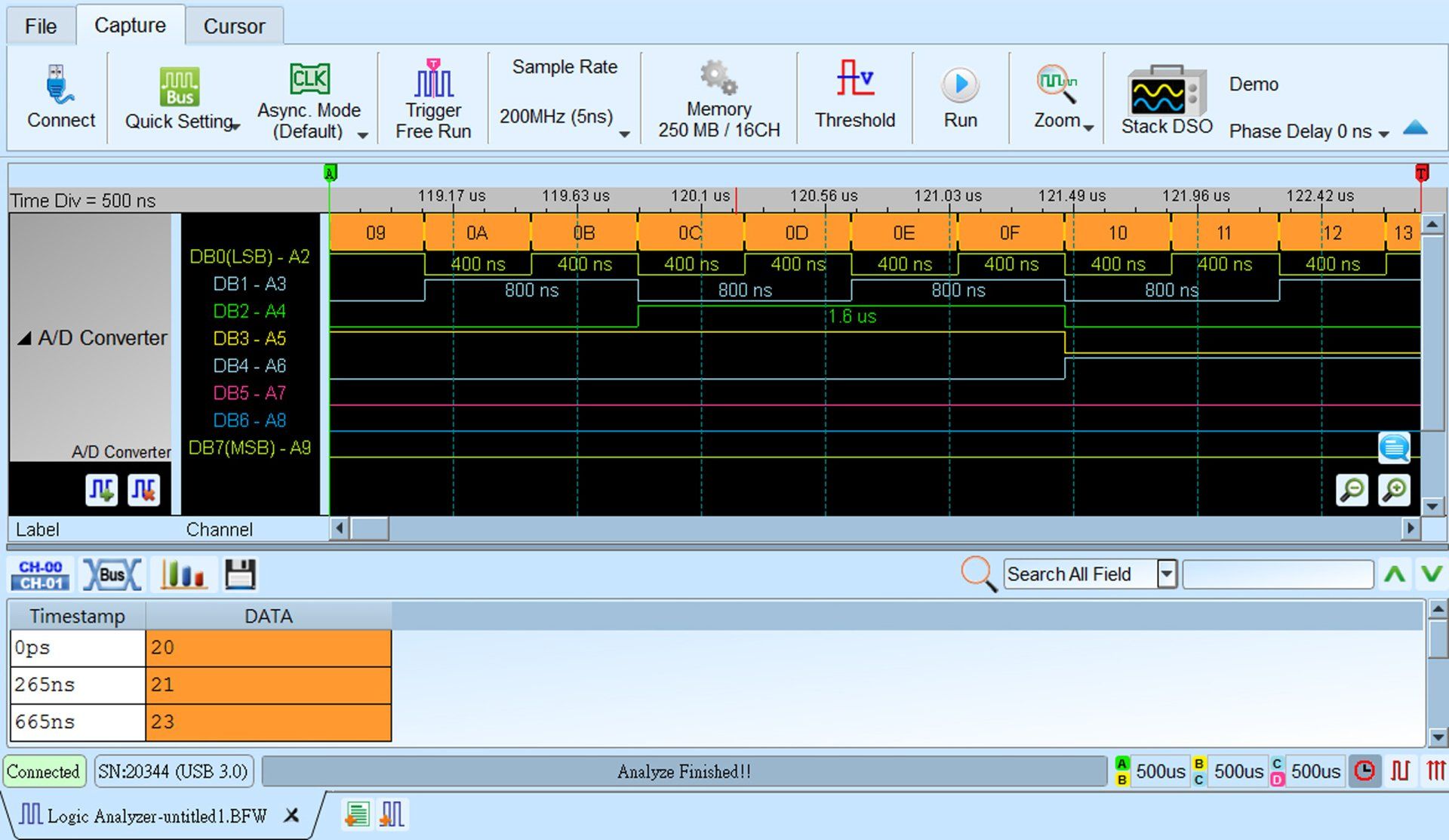

Acute - Logikanalysator - Protokollanalysator - Software
Features:
  • 68 / 136 channels per module - cascadable to over 1000 channels
  • 4/8 clock channels
  • PC-based
  • USB3.0 interface
  • 12V plug-in power supply
  • 4GHz timing analysis / 400MHz state analysis
  • 32Gb RAM data memory
  • Active probes
  • Logic, state, protocol trigger
  • Can be extended with a DSO to an MSO via a trigger cable
  • Bus trigger I: BiSS-C, CAN2.0, DALI, I²C, I²S, LIN2.2, PWM, SPI, UART, USB PD3.0, ...
  • Bus trigger II: eMMC5.1, eSPI, MIPI SPMI 2.0, NAND Flash, SD3.0, Serial Flash, SVID
  • Protocol analysis I: I²C, SPI, UART, USB PD3.0
  • Protocol analysis II: CAN2.0, BiSS-C, DALI, eSPI, I²S, LIN2.2, MDIO, PMBus, PWM, SD3.0, SVID, ...
  • Bus decoding: CAN2.0, eMMC5.1, I²C, Profibus, SD3.0, SPI, SVID, UART, ...(80+ decodings)
  • Win 7, Win 8, Win 10 (64 bit - recommended)
  • PC RAM 16GB (recommended) or 8GB
  • Stack cable for MSO setup with external oscilloscopes => see list
  • Download manual
  • Download software - for testing

LA4000 series + LVDS option - prices:
  • LA4068E = 8400 EUR + VAT
  • LA4068B = 10000 EUR + VAT
  • LA4136E = 11700 EUR + VAT
  • LA4136B = 13400 EUR + VAT
  • LVDS option = 1100 EUR + VAT
Download datasheet LA4000 Download presentation
TravelLogic TL4000 - 2GHz - 34 channels - 8Gb memory - USB3.0
Acute - Logikanalysator - Protokollanalysator

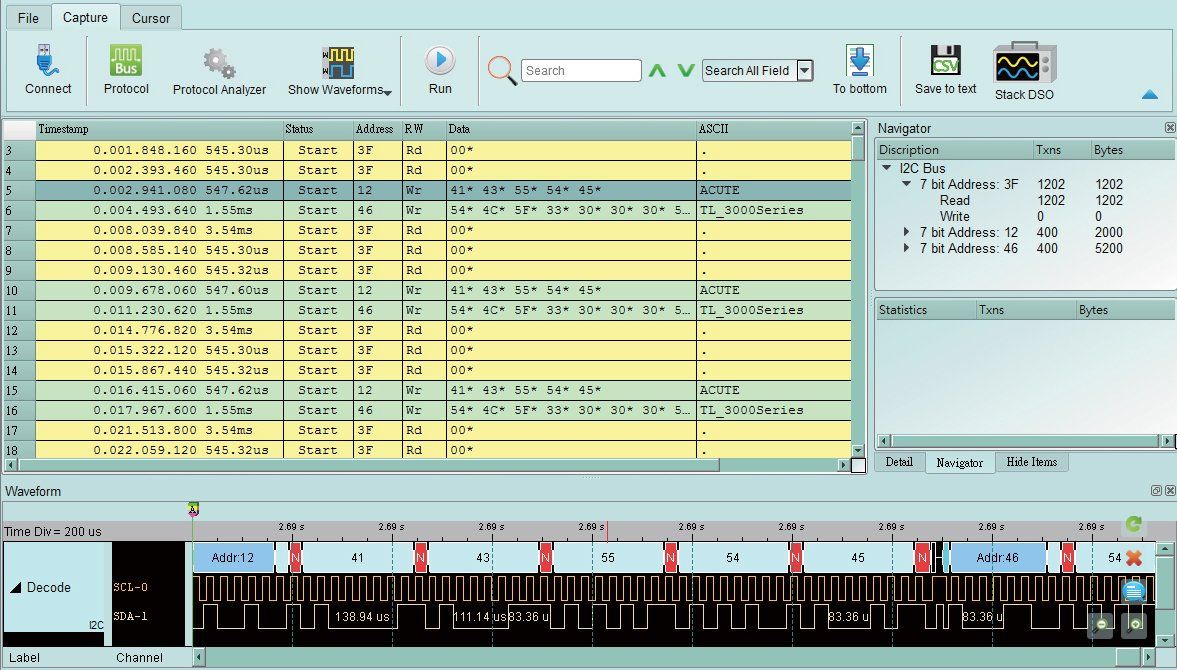

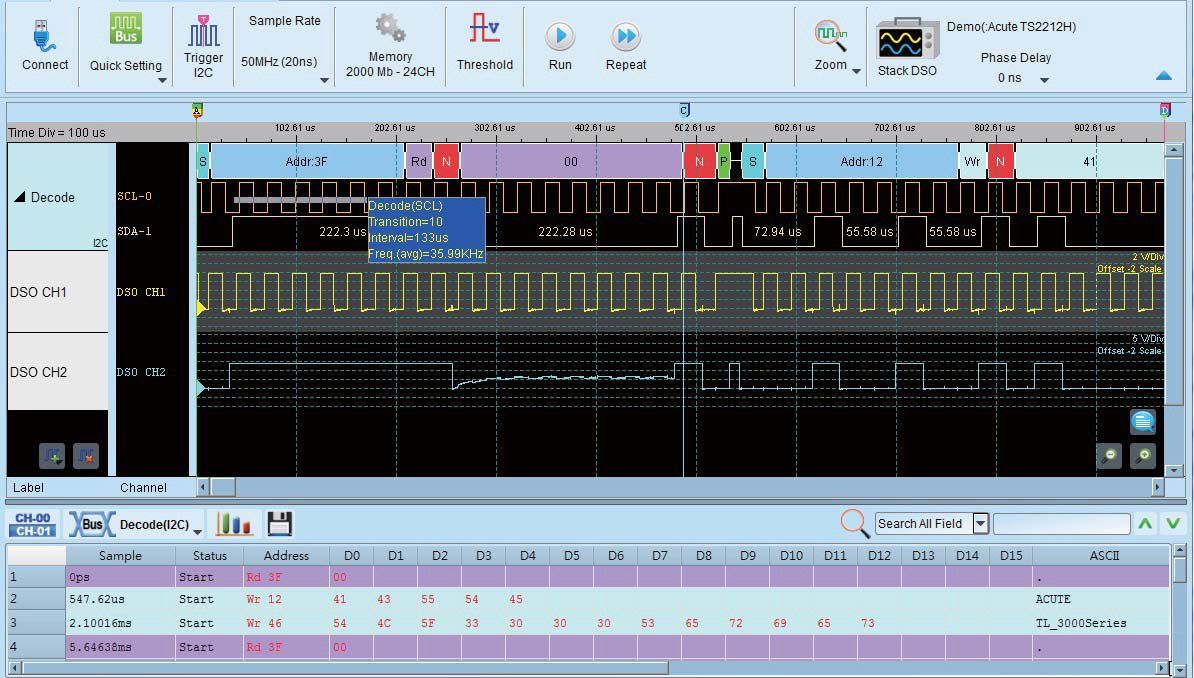

The new TravelLogic TL4000 series from ACUTE replaces the well-known TL3000 series. The TL4000 series is also so compact that it fits in a jacket pocket. In contrast to the previous model, the TL4000 series offers 250MHz state analysis, an HD stream mode and 2 analog inputs for the protocol analyzer mode. In conjunction with oscilloscopes from ACUTE, Agilent, GwInstek, LeCroy and Tektronix, a mixed signal analyzer can be set up ..... see overview Open protocol interface: If the desired protocol is not included in the more than 80 protocol interpreters, or there is a need to integrate a customer-specific protocol, then the open protocol interface of the TravelLogic is a helpful feature. To implement your own decoding function, simply write a dynamic link library (DLL) and insert it into the plug-in folder of the TravelLogic installation directory. The structural design of the DLL describes the LA Open Decode Interface.
Acute - Logikanalysator - Protokollanalysator - Software
Performance overview of the three models:
  • TL4134E - 34 Kanäle - 2GHz Timing / 250 MHz State - 4Gb Speicher - Bus Trigger I - Protokoll Analysator I
  • TL4134B - 34 Kanäle - 2GHz Timing / 250 MHz State - 4Gb Speicher - Bus Trigger I II - Protokoll Analysator I II
  • TL4234B - 34 Kanäle - 2GHz Timing / 250 MHz State - 8Gb Speicher - Bus Trigger I II III - Protokoll Analysator I II III
Special functionalities (depending on the different models):
  • Bus Decode : BiSS-C, CAN 2.0B/CAN FD, DP_Aux¹, DMX512, EDID, eMMC 5.0, eSPI, I²C, I²S, I3C, MII, MIPI DSI LP, NAND Flash, NEC IR, Profibus, SD 3.0/SDIO, ... (80+)
  • Serial Flash, SPI, SVID², SWD, UART, USB1.1, USB PD 3.0... (90+)
  • Bus Trigger I : BiSS-C, CAN2.0B/CAN FD, DP_Aux¹, I2C, I2S, LIN2.2, SPI, UART, USB PD 3.0, ...
  • Bus Trigger II : DALI, I3C, LPC, Mini/Micro LED, PMBus, Profibus, SMBus, SVI2, USB1.1, ...
  • Bus Trigger III : eMMC 4.5, eSPI, MII, RGMII, RMII, NAND Flash, SD 3.0, SVID³, ...
  • Protocol Analyser I : BiSS-C, CAN2.0B/CAN FD, DP_Aux¹, I2C, I2S, SPI, UART, USB PD 3.0, ...
  • Protocol Analyser II : DALI, I3C, LPC, Mini/Micro LED, Profibus, SMBus, SVI2, USB1.1, ...
  • Protocol Analyser III : eSPI, MII, RGMII, RMII, SVID³
  • Download manual
  • Download software - for testing
¹ Optional DP AUX adapter needed.
² Upon request ONLY by users who have signed CNDA with Intel, SVID decode supported by all TL4000 models.
Upon request ONLY by users who have signed CNDA with Intel, SVID trigger & PA supported by TL4234B ONLY.
Specifications marked in BLUE are different from TL3000 series.

TravelLogic TL4000 prices:
  • TL4134E = 1400 EUR + VAT
  • TL4134B = 2400 EUR + VAT
  • TL4234B = 3400 EUR + VAT
Download datasheet

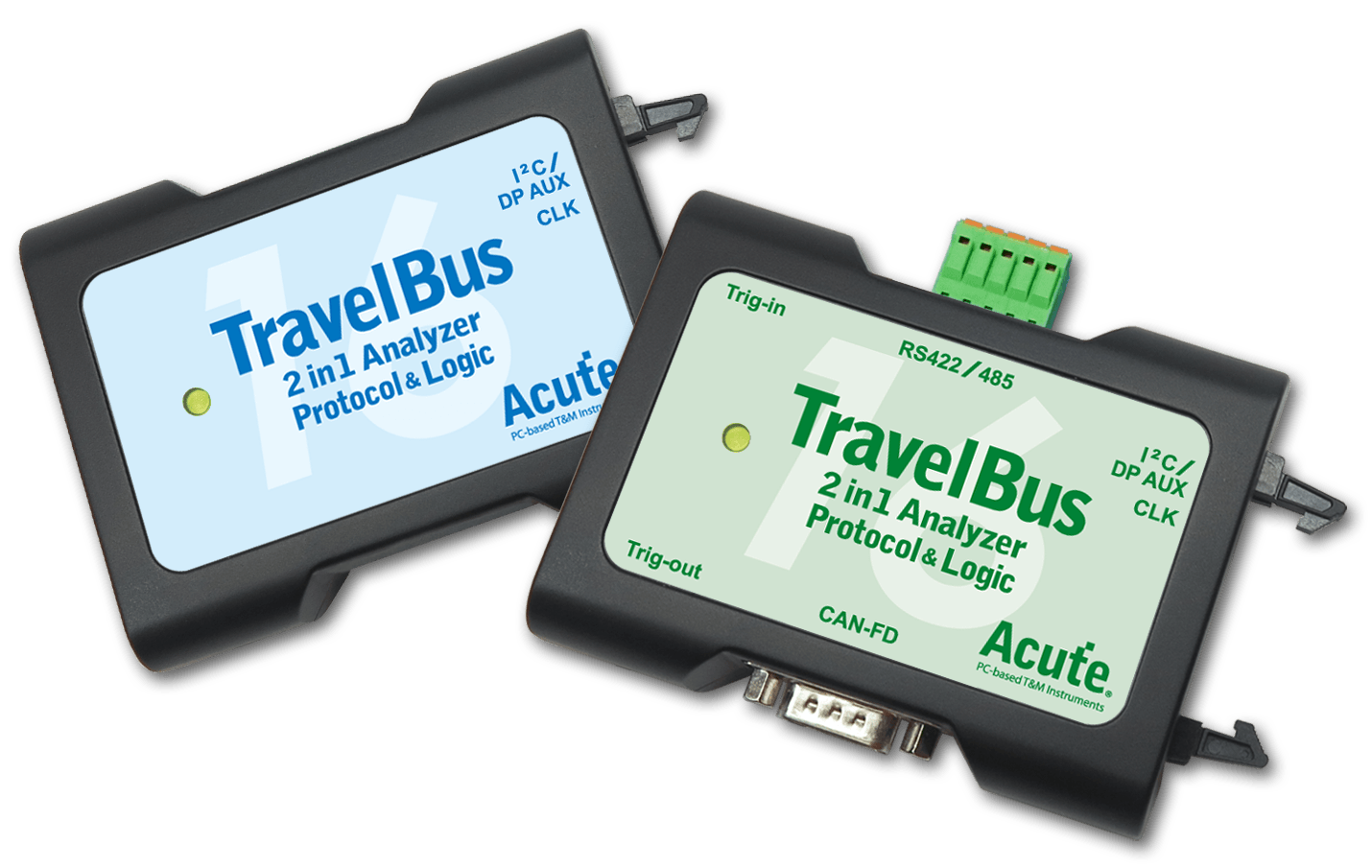

TravelBus TB3000 - 800MHz Timing - 200MHz State - 2-in-1 Analysator - USB3.0
Acute - Logikanalysator - Protokollanalysator

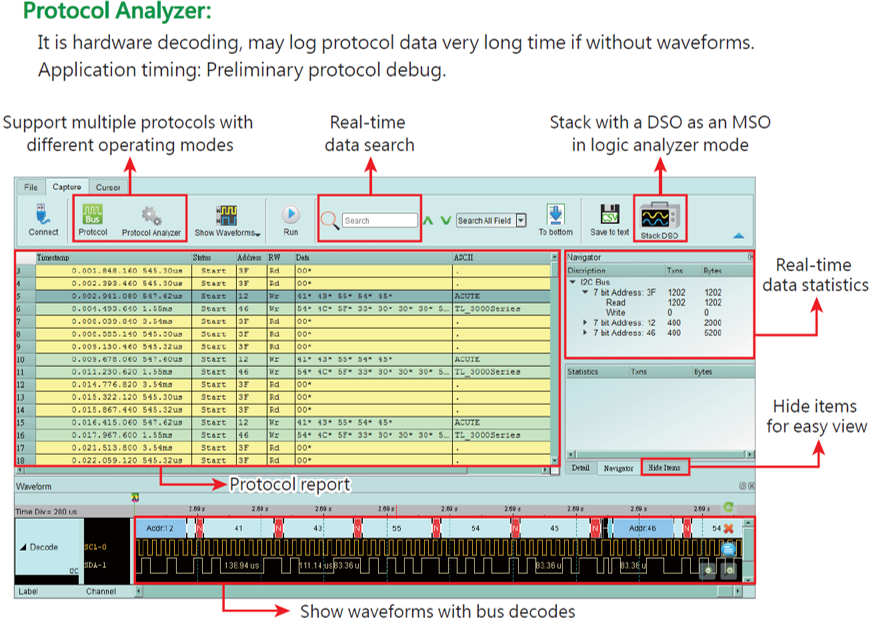

The TravelBus 3000 series is typically intended for measurements in the automotive and automation industries. PC-based, USB 3.0 interface/power supply800 MHz timing / 200 MHz state analysisDigital channels: 16 (data), 1 (clock), 2 (I²C/DP_AUX)Memory: PC RAMReal-time data and waveform displayData logger The TravelBus 3000 series not only supports the common protocols such as I2C etc., but also the direct measurement of differential signals such as RS485 (EIA485)、RS422、CAN2.0、CAN FD、DP-AUX etc.. In addition, the TB3000 series is a 2-in-1 analyzer (Logic Analyzer Mode & Protocol Analyzer Mode) in one system for the long-term analysis of serial bus systems such as: DALIDP_AUXHID via I2CI2CI2SMDIOPMBusPWMLINSMBusSPIRS232RS422 (4 channels)RS485 (4 Channels)USB1.1CAN-Bus 2.0B (2 channels - 1000V isolated)CAN-FD (2 channels - 1000V isolated)ProfiBusModBusHigh-speed long-term analysis:With the help of the direct "high-speed" USB3.0 transmission, the TravelBus modules do not have an internal analysis memory but work directly in the RAM of the PC and thus offer the possibility of long-term analysis on the one hand and a very interesting price/performance ratio on the other.Safe and simple measurement of industrial control signals:With the help of the integrated CAN and RS485 ports, the TravelBus TB3016B can measure the differential channels on CAN bus and RS485 directly, without the use of transceivers or differential probes. The integrated differential CAN bus and RS485 channels are additionally isolated and 1000V protected.
The TravelBus modules can display the analysis data simultaneously in digital (real-time data) and graphical form (waveform display).

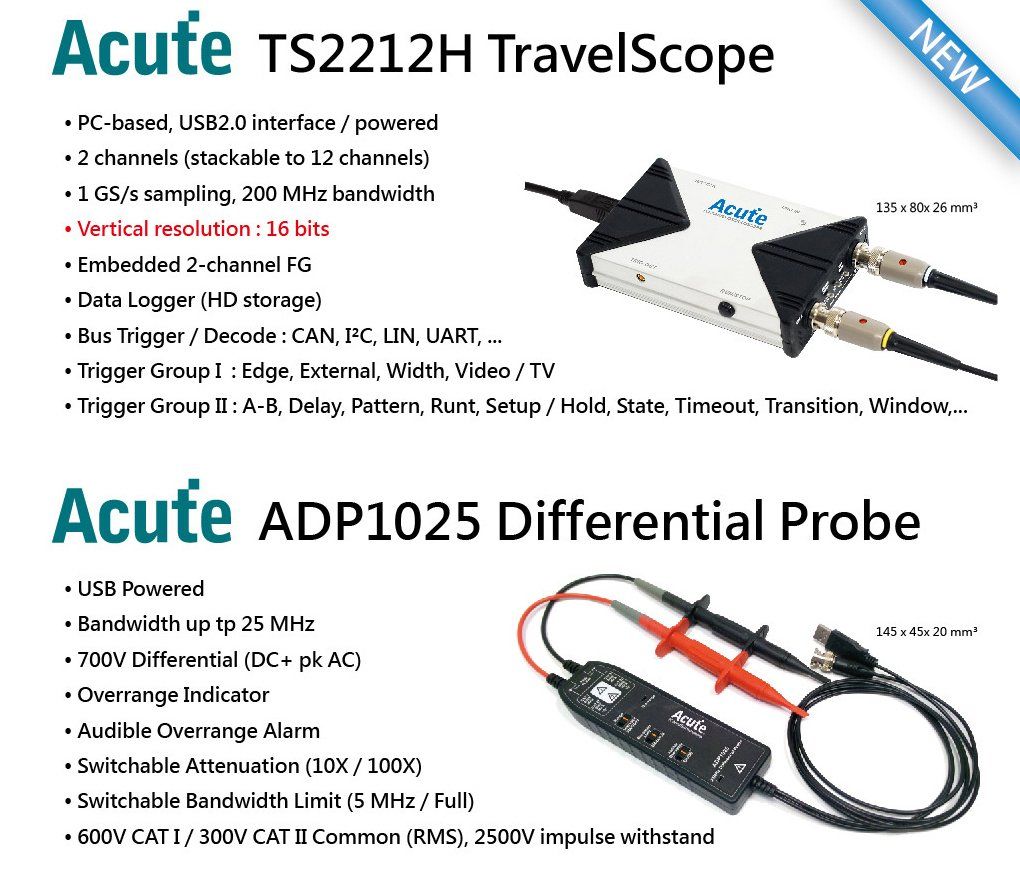

Extension to a mixed signal analyzer (MSO)
Acute - Speicheroszilloskope 16 bit
The TravelBus TB3016B is additionally equipped with a trigger IN/OUT stack connector and can be expanded to a multi-signal oscilloscope (MSO) in conjunction with a TravelScope oscilloscope. Power is also supplied via the USB port, ensuring a completely mobile and very compact solution => Download manual Download software Performance overview Basic functions - TB3016F TB3016E TB3016B: PC-based USB3.0 - data transfer and power supply800/200 MHz timing/state analysisDigital channels: 16 (data), 1 (clock), 2 (I2C / DP_AUX)Analysis memory: PC-RAM via USB3.0 for long-term analysisReal-time data waveform display simultaneouslyData loggerBus decode: CAN FD, DALI2.0, DP_Aux, I²C, I²S, LIN2.2, PMBus, PWM, SMBus, SPI, MIPI I3C 1.1, UART, USB PD 3, ... (70 decodes)Module I - Protocol Analyzer : I²C, MIPI I3C 1.1, SPI, UART (RS232) TB3016E additional: Module II - Protocol Analyzer : HID over I²C, I²S, LIN2.2, MDIO, PMBus, SMBus, USB1.1 TB3016B additional: Module III - Protocol Analyzer : BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, Profibus, RS485, ...Differential channels : 2 (CAN2.0B/CAN-FD), 4 (RS422/485)Isolated Ground : CAN2.0B/CAN-FD, RS485 (Safety Isolation >1000Vrms)MSO extension via hardware trigger - cascadable with TravelScope to form a multi-signal oscilloscope (MSO)

 TravelBus TB3000 Prices:

  • TB3016F (I) = 210 EUR   + VAT
  • TB3016E (I II) = 420 EUR   + VAT
  • TB3016B (I II III) = 840 EUR   + VAT
Download TB3000 datasheet
