TravelScope - DSO3000 - USB storage oscilloscopes - 200MHz - 16-bit resolution - USB3.0
PC USB-Oszilloskop von Acute - 8-16 Bit - 200MHz
  • PC-based, USB3.0 interface / powered (Type-A / Type-C)Record length: 128Mpts/chChannel: 4Sample rate: 1 GS/sBandwidth: 200 MHzData Logger (HDD / SSD Storage)Digital Voltmeter: 3 digitsFrequency Counter: 5 digitElektrische Validierung：I2C,...
PC USB-Oszilloskop Software von Acute
The TravelScope DSO3000 from ACUTE Technology is not only a PC USB oscilloscope, it is also a digital voltmeter, a function generator and can be turned into a mixed signal oscilloscope (MSO) in conjunction with a logic analyzer from the TravelLogic series. The PC oscilloscope series "TravelScope 3000" from ACUTE Technology achieves real-time sampling of a maximum of 1GS/s. The vertical bandwidth is 200MHz (1-channel), 100MHz/channel (2-channel) and 50MHz (4-channel) with a vertical sensitivity of 2mV/div to 10V/div, which is unusual in this device class, and a resolution of 8-bit to 16-bit (TS3124H V). In rolling mode, a maximum of 250kS/s can be achieved, depending on the PC. The TravelLogic oscilloscopes are designed for an overvoltage range of 100V (DC AC peak) and have an offset range of ±1.5V to ±150V. The switchable 250MHz probes (x1/x10) are included in the scope of delivery. Depending on the model, the trigger modes available are Rising, Falling, Alternate, Either, Single, Delay, Edge, Width, Video/TV, Advanced Trigger 2 and Bus Trigger (ARINC 429, CAN, I²C, LIN, MIL-STD-1553, ProfiBus, SPI (2-Wire), UART, USB1.1, ...) which can be triggered automatically, manually or "single" with an additional RUN/STOP button on the DSO box. The massive buffer memory of 128 MSamples (TS3124E/F B H) in single-channel operation and 2 x 64 MSamples in dual-channel operation enables signal acquisition over a long time base. The new active differential probes ADP1025, ADP2025, ADP1100 and ADP2100 from ACUTE are optimally adapted to the TravelScope series with 25MHz and 100MHz, see product information. Advanced Trigger II Bus Trigger The two models TS3124B H provide Advanced Trigger II and additional bus triggers (real hardware triggers): ARINC 429, CAN, CAN-FD, I²C, LIN, MIL-STD-1553, ProfiBus, SPI (2-Wire), UART, USB1.1, see data sheet. Voltmeter (DVM) frequency counter The PC oscilloscope TS3124B H is also equipped with a 5-digit voltmeter (DVM) and a 5-digit frequency counter. TS3124H V DSO with selectable vertical resolution up to 16-bit Electrical Validation (V) The PC oscilloscopes TS3124H V (high-resolution) from the TravelScope series by ACUTE Technology are equipped with a reconfigurable A/D converter. This means that 8, 12, 14, 15 or 16-bit vertical resolution can be selected if required. The TS3124V also has "Electrical Validation", see data sheet. Unlimited mobile use In contrast to other PC oscilloscopes in this performance class, the TravelScopes do not require an external power supply thanks to power supply via the USB3.0 port and can therefore be used with laptops and notebooks without any restrictions. Up to 16 channels cascadable with SyncClock input Using the integrated stack cable, up to 4 x TravelScopes of the same model can be connected to each other using the latest software, providing either up to 4 inputs with 1GS/s per input, up to 8 inputs with 500MS/s each or up to 16 inputs with 250MS/s per input. The jitter is ±1ns in multiple single-channel mode and ±2ns in multiple dual-channel mode between the master and slave channels. The PC scopes of the TS3000 series are equipped with a special 10MHz SyncClock input. When using the SyncClock input, the jitter is reduced to approx. 100ps and no input is lost as a trigger input.

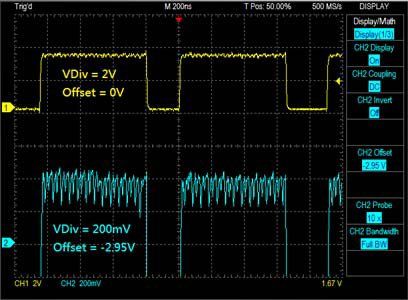

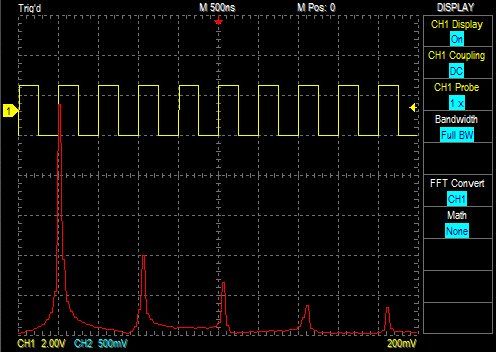

TravelScope offset ranges: 150 V @ 2, 5, 10 V/div, ±15 V @ 0.2, 0.5, 1 V/div, ±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div. The vertical offset can be used to check small changes in the input signal, which can improve the accuracy of the measurement. The TravelScope's input scale is 2 mV/div to 10 V/div! Mathematical functions including FFT signal analysis In addition to a variety of measurement methods, mathematical calculations including extensive FFT analysis methods are available (Rectangular, Blackman, Hann, Hamming, Harris, Triangular, Cosine, Lanczos, Gaussian - Vertical Scale: dBm RMS, dbV RMS, Linear RMS).
Internet Monitoring
The TravelScope can also communicate as a WLAN-based DSO using the "Internet Monitoring" function (TCP/IP). WORD, EXCEL, CSV, TEXT, HTML, clipboard, hardcopy and preview are implemented as export formats. I/O port function generator An I/O port 3.3V TTL with >8ns trigger pulse as well as a data logger mode and an integrated 2-channel function generator with modulation, sweep and burst functions offer a wide range of possible applications. MSO - Mixed Signal Oscilloscope A powerful mixed signal oscilloscope can be created in conjunction with the 4GHz TravelLogic TL3000 logic analyzers.
I/O port + function generator
A 3.3V TTL I/O port with >8ns trigger pulse as well as a data logger mode and an integrated 2-channel function generator with modulation, sweep and burst function offer a wide range of possible applications.

MSO - Mixed Signal Oscilloscope
In combination with the 4GHz logic analysers TravelLogic TL3000, a powerful mixed-signal oscilloscope can be realised.

Operating systems + programming languages
The PC scope software included in the scope of delivery supports Windows7/8/10 (32/64-bit) - software download
End of 2023 Support for Linux Ubuntu (64-bit)* and macOS* - * Free update end of 2023.
A VB and a VC driver are available for developing your own applications - Development environments
  • DSO Trigger I: Edge, Either, External, Falling, Rising, Video, Width
  • DSO Trigger II: Runt, Pattern/State, Timeout, Transition, Setup/Hold, B-Trigger, B-Event, Window
  • Bus Trigger/ Decode I: BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux[1], MIPI I3C 1.1, USB PD 3, ...
  • Bus Trigger/ Decode II: SVI3[2], SVID[3]
[1] Optional DP_Aux adapter needed.
[2] Upon request by user who is approved by AMD. SVI3 Bus Trigger / Decode are supported ONLY by TS3124V.
[3] Upon request by user who has signed CNDA with Intel. SVID Bus Trigger / Decode are supported ONLY by TS3124V.

TravelSope prices:
  • TS3124E (8-bit - DSO I)= 700 EUR + VAT.
  • TS3124B (8-bit, DSO I+II, Bus Trigger I) = 1000 EUR + VAT
  • TS3124H (8 + 12-16-bit, DSO I+II, Bus Trigger I)= 1700 EUR + VAT
  • TS3124V (8 + 12-16-bit, DSO I+II, Bus Trigger I+II + Electrical Validation) = 2700 EUR + VAT
Download TS3000 datasheet Cascading Example Download TS3000 manual
